NJR4234BV - 24GHz Microwave Intelligent Distance Measurement Sensor Module

Key Features

  • Distance measurement sensor using the 24GHz microwave Measurement distance of 30 m for a pedestrian.
  • Note1 Antenna, Microwave RF circuit, Base-band IF circuit, MCU and also signal processing are integrated in a low-profile package Low-power-consumption 37 mA @ 3.3 V power supply.
  • Note2 Unique Signal Processing / Algorithm Installation High sensitivity mobile object detection (Patented Technology) Distance measurement signal processing Automatic calibration and gain control Radio interfe.

📥 Download Datasheet

Datasheet Details

Part number NJR4234BV
Manufacturer New Japan Radio
File Size 6.06 MB
Description 24GHz Microwave Intelligent Distance Measurement Sensor Module
Datasheet download datasheet NJR4234BV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJR4262 K-Band Doppler Sensor Module JRC
NJR4267 24GHz band Doppler Sensor Module Nisshinbo
NJR4652F2S1 60GHz Smart Sensor Micro-Module Nisshinbo
NJR4652F2S2 60GHz Smart Sensor Micro Module Nisshinbo
NJR4652JS1 60GHz Smart Sensor Micro-Module Nisshinbo

Other Datasheets by New Japan Radio

Part Number Description
NJR4234BW 24GHz Microwave Intelligent Distance Measurement Sensor Module
NJR4265R 24GHz Microwave Intelligent Motion Sensor
NJR4266 24GHz Microwave Intelligent Motion Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

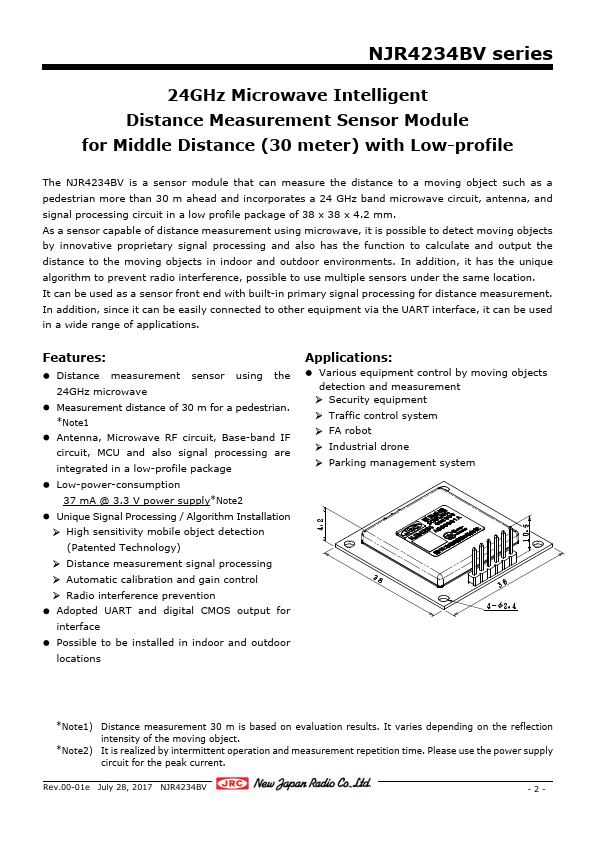

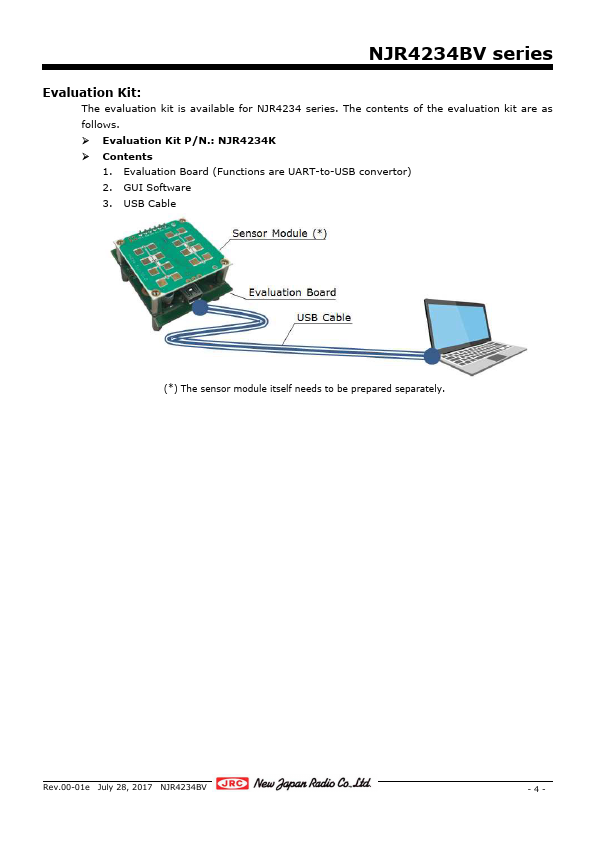

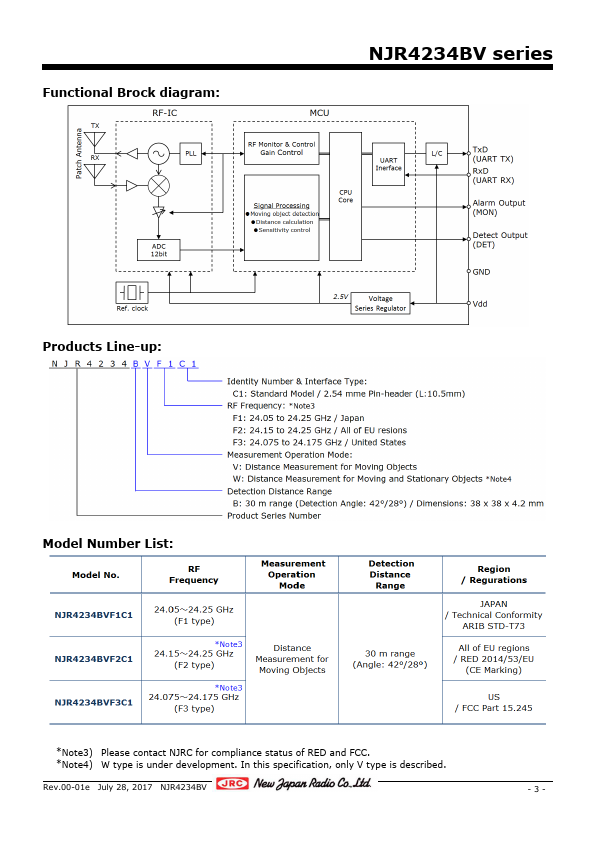

NJR4234BV series 24GHz Microwave Intelligent Distance Measurement Sensor Module for Middle Distance (30 meter) with Low-profile The NJR4234BV is a sensor module that can measure the distance to a moving object such as a pedestrian more than 30 m ahead and incorporates a 24 GHz band microwave circuit, antenna, and signal processing circuit in a low profile package of 38 x 38 x 4.2 mm. As a sensor capable of distance measurement using microwave, it is possible to detect moving objects by innovative proprietary signal processing and also has the function to calculate and output the distance to the moving objects in indoor and outdoor environments. In addition, it has the unique algorithm to prevent radio interference, possible to use multiple sensors under the same location.
