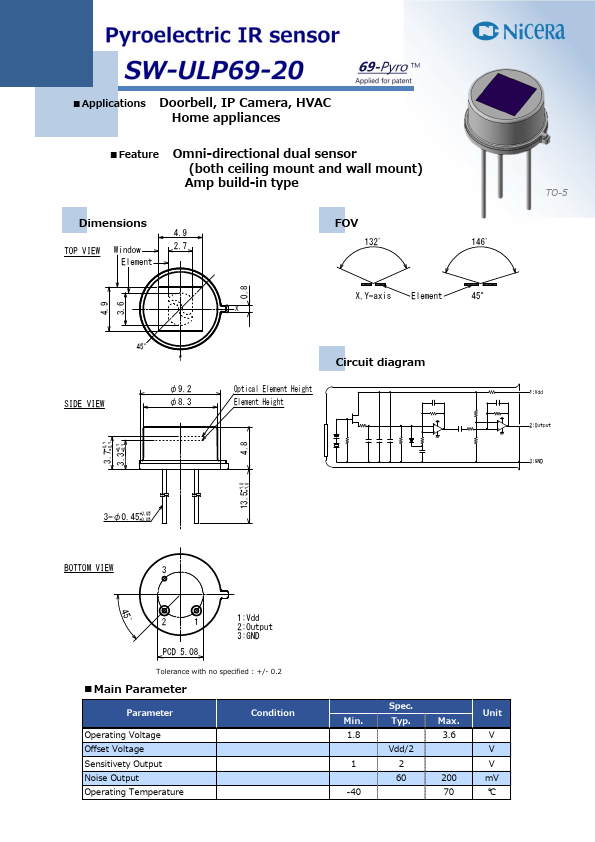

SW-ULP69-20
SW-ULP69-20 is PYROELECTRIC IR SENSOR manufactured by Nippon Ceramic.
- Applications Doorbell, IP Camera, HVAC Home appliances
- Feature Omni-directional dual sensor (both ceiling mount and wall mount) Amp build-in type
Dimensions
TOP VIEW Window
Element
132ﾟ
146ﾟ
X,Y-axis Element
45°
TO-5
4.9 3.6
SIDE VIEW
45° Y
φ9.2 φ8.3
Optical Element Height Element Height
Circuit diagram
+
- 1:Vdd
+
2:Output
- 3:GND
+0.1 3.7 -0.1
+0.1 3.3 -0.1
+1.0 13.5 -1.0
3-φ0.45++00..0055
BOTTOM VIEW
45ﾟ
PCD 5.08
1:Vdd 2:Output 3:GND
Tolerance with no specified : +/-...
