2SA1419 - Bipolar Transistor

Product Overview

ON Semiconductor

Part number	2SA1419
Manufacturer	ON Semiconductor
File Size	229.06 KB
Description	Bipolar Transistor
Datasheet	2SA1419 Datasheet

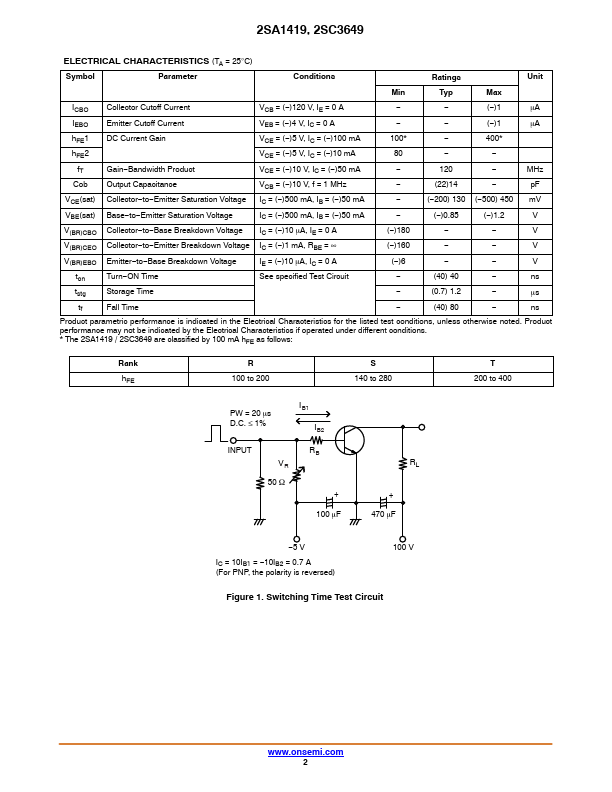

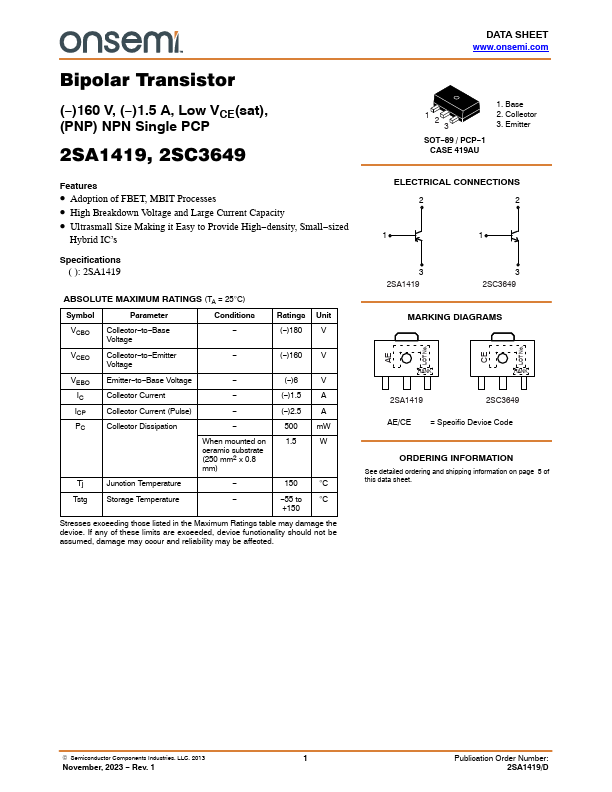

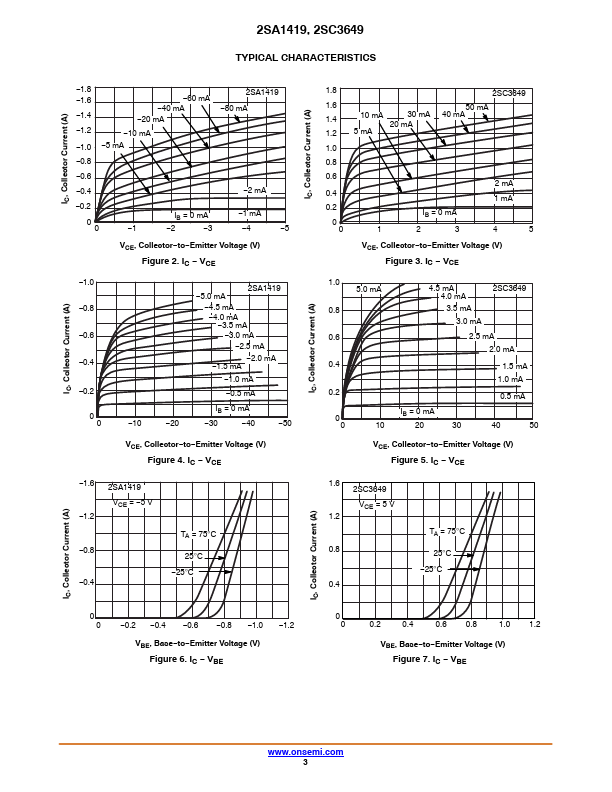

Additional preview pages of the 2SA1419 datasheet.

Adoption of FBET, MBIT processes.
High breakdown voltage and large current capacity.
Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s Speciﬁcations ( ) : 2SA1419 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Collector Dissipation PC Junction Temperature Storage Temperature Tj Ts.
