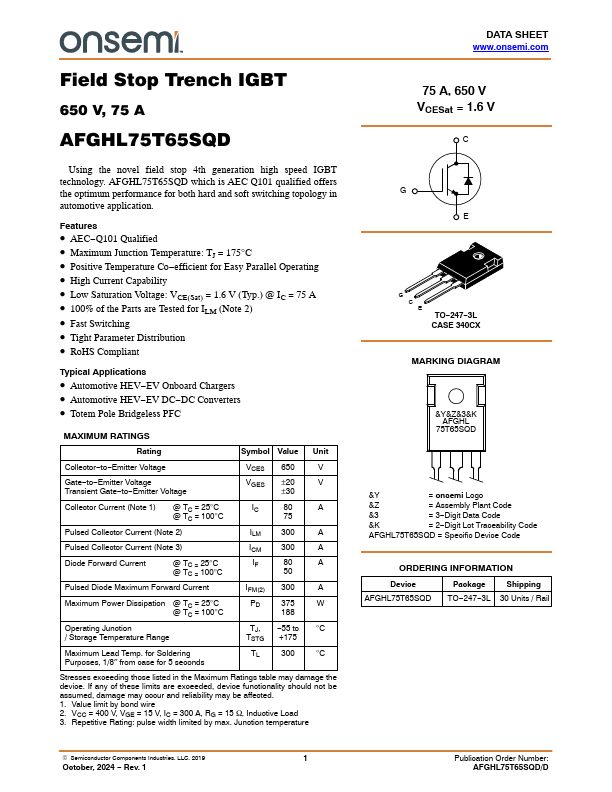

AFGHL75T65SQD
AFGHL75T65SQD is 650V 75A Field Stop Trench IGBT manufactured by onsemi.
Field Stop Trench IGBT
650 V, 75 A
Using the novel field stop 4th generation high speed IGBT technology. AFGHL75T65SQD which is AEC Q101 qualified offers the optimum performance for both hard and soft switching topology in automotive application.
Features
- AEC- Q101 Qualified
- Maximum Junction Temperature: TJ = 175°C
- Positive Temperature Co- efficient for Easy Parallel Operating
- High Current Capability
- Low Saturation Voltage: VCE(Sat) = 1.6 V (Typ.) @ IC = 75 A
- 100% of the Parts are Tested for ILM (Note 2)
- Fast Switching
- Tight Parameter Distribution
- RoHS pliant
Typical Applications
- Automotive HEV- EV Onboard Chargers
- Automotive HEV- EV DC- DC Converters
-...
