BCP68T1G - NPN Transistor

Product Overview

ON Semiconductor

📥 Download Datasheet

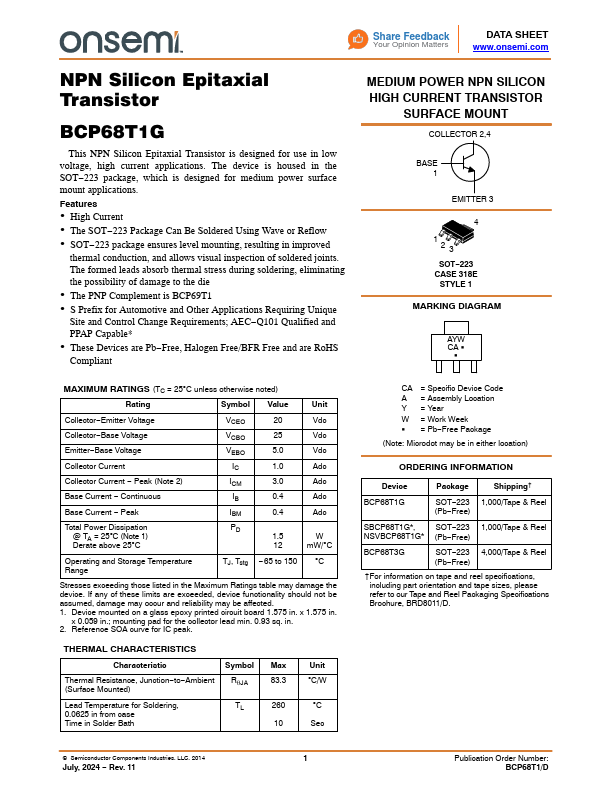

BCP68T1G NPN Transistor by ON Semiconductor - Datasheet Preview — Datasheet preview – BCP68T1G

Datasheet Details

Part number	BCP68T1G
Manufacturer	ON Semiconductor
File Size	195.17 KB
Description	NPN Transistor
Datasheet	BCP68T1G Datasheet

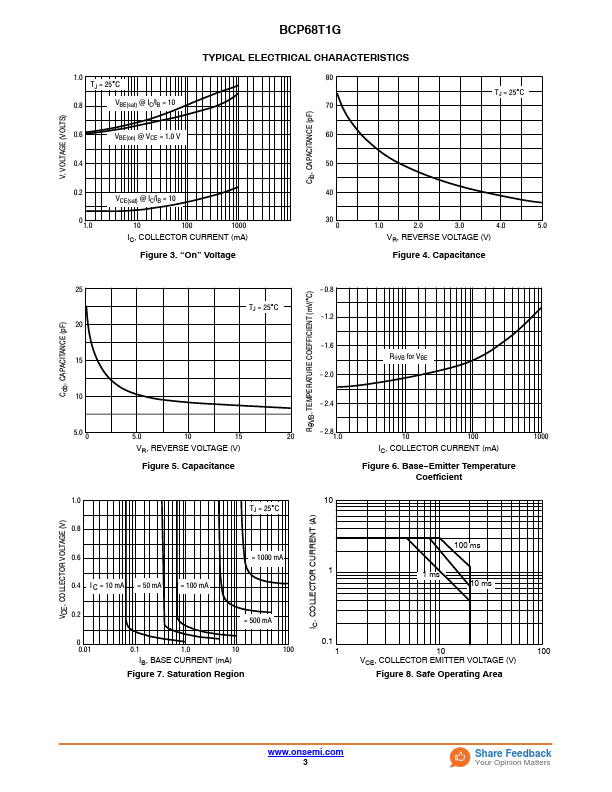

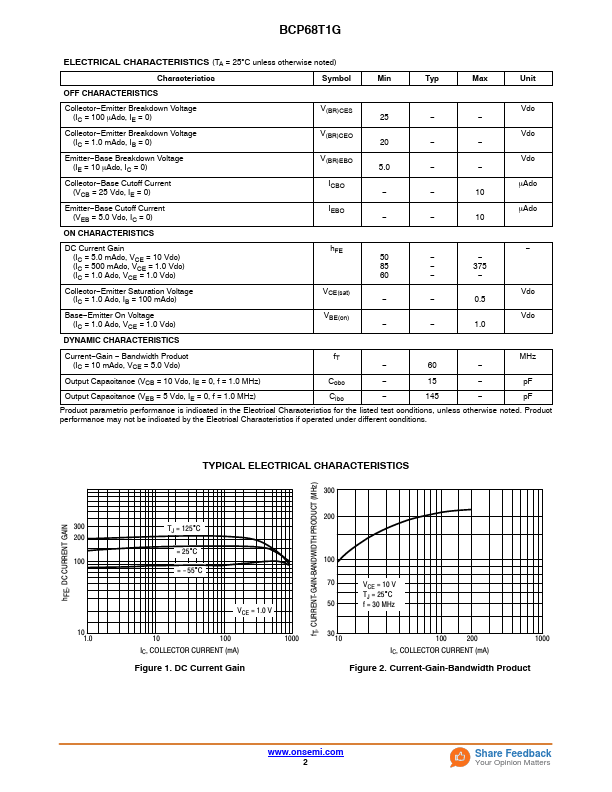

Additional preview pages of the BCP68T1G datasheet.

Product details

Features

High Current.
The SOT.
223 Package Can Be Soldered Using Wave or Reflow.
SOT.
223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
The PNP Complement is BCP69T1.
S Prefix for Automotive and Other.
