Datasheet Details
| Part number | DAP202U |
|---|---|
| Manufacturer | onsemi |
| File Size | 54.53 KB |
| Description | Common Anode Silicon Dual Switching Diodes |
| Datasheet | DAP202U_ONSemiconductor.pdf |
|
|

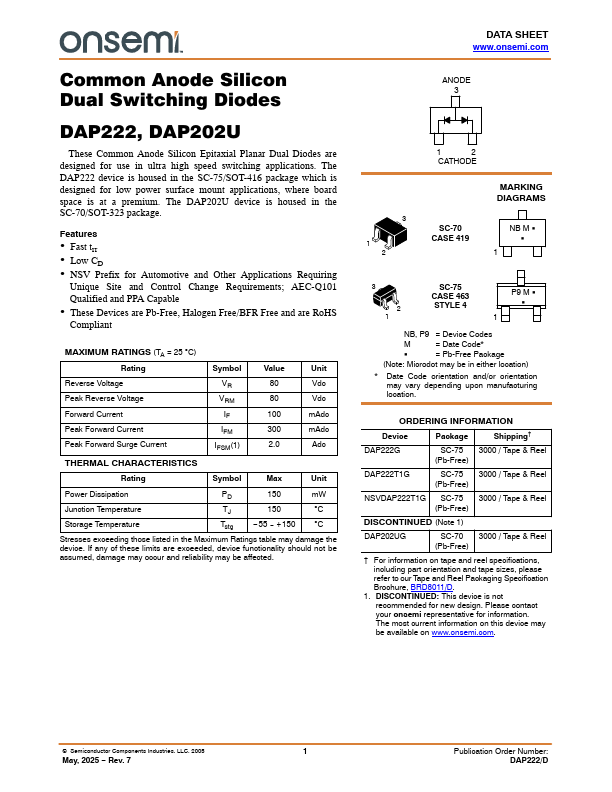

Overview: DAP222, DAP202U Preferred Device mon Anode Silicon Dual Switching Diodes These mon Anode Silicon Epitaxial Planar Dual Diodes are designed for use in ultra high speed switching applications. The DAP222 device is housed in the SC−75/SOT−416 package which is designed for low power surface mount applications, where board space is at a premium. The DAP202U device is housed in the SC−70/SOT−323 package.
| Part number | DAP202U |
|---|---|
| Manufacturer | onsemi |
| File Size | 54.53 KB |
| Description | Common Anode Silicon Dual Switching Diodes |
| Datasheet | DAP202U_ONSemiconductor.pdf |
|
|
|
