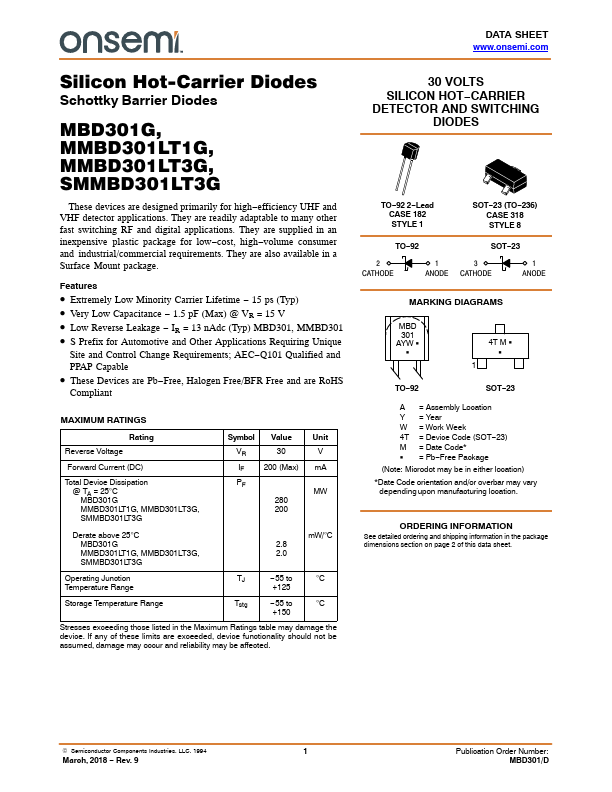

MMBD301LT3G Overview
Key Features
- Extremely Low Minority Carrier Lifetime
- Very Low Capacitance
- 1.5 pF (Max) @ VR = 15 V
- Low Reverse Leakage
- IR = 13 nAdc (Typ) MBD301, MMBD301
- S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
