MMBD352LT1G
MMBD352LT1G is Dual Hot Carrier Mixer Diodes manufactured by onsemi.
Dual Hot Carrier Mixer Diodes
MMBD352LT1G, MMBD353LT1G, NSVMMBD353LT1G, MMBD354LT1G, NSVMMBD354LT1G, MMBD355LT1G
These devices are designed primarily for UHF mixer applications but are suitable also for use in detector and ultra- fast switching circuits.
Features
- Very Low Capacitance
- Less Than 1.0 pF @ Zero V
- Low Forward Voltage
- 0.5 V (Typ) @ IF = 10 mA
- NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant

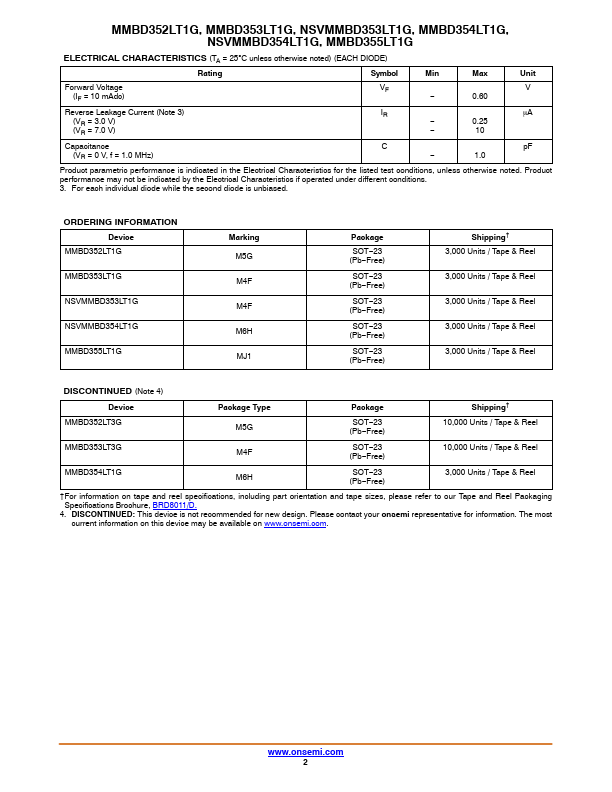

MAXIMUM RATINGS (EACH DIODE)
Rating
Symbol Value
Unit
Continuous Reverse Voltage
Stresses exceeding...
