MMBT5401L - High Voltage Transistor

onsemi

Key Features

S and NSV Prefix for Automotive and Other.

MMBT5401L high voltage transistor by onsemi - Datasheet Preview

Datasheet Details

Part number	MMBT5401L
Manufacturer	onsemi
File Size	121.06 KB
Description	High Voltage Transistor
Datasheet	MMBT5401L Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBT5401LT1	High Voltage Transistor	Motorola
MMBT5401LT1	High Voltage Transistor(PNP Silicon)	ON
MMBT5401LT1	TRANSISTOR	WEJ
MMBT5401LT1	PNP Transistor	TGS
MMBT5401LT1	PNP Transistor	Tuofeng Semiconductor

Other Datasheets by onsemi

Part Number	Description
MMBT5401LT1G	High Voltage Transistor
MMBT5401LT3G	High Voltage Transistor
MMBT5401	PNP Epitaxial Silicon Transistor
MMBT5401W	High Voltage Transistor
MMBT5087	PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

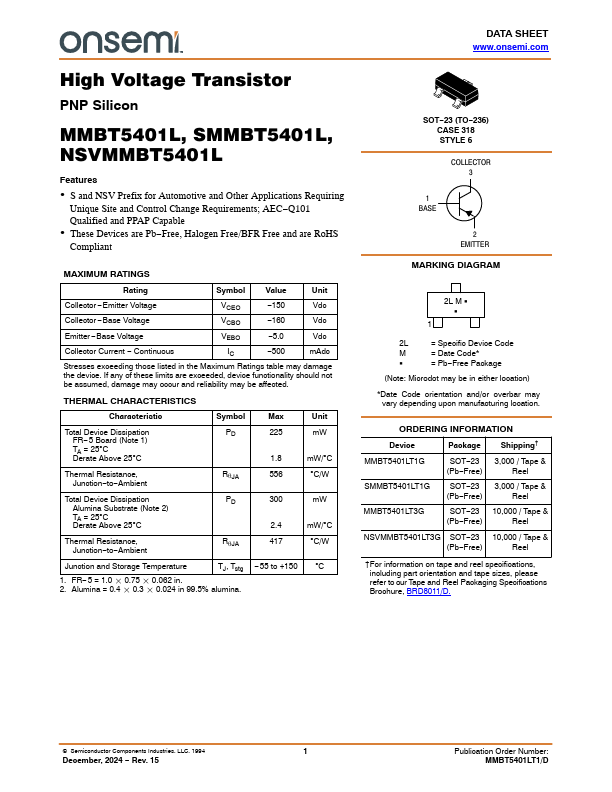

MMBT5401L, SMMBT5401L, NSVMMBT5401L High Voltage Transistor PNP Silicon Features • S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector −Emitter Voltage VCEO −150 Vdc Collector −Base Voltage VCBO −160 Vdc Emitter −Base Voltage VEBO −5.0 Vdc Collector Current − Continuous IC −500 mAdc Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
