MMBT5401W - High Voltage Transistor

onsemi

Key Features

NSV Prefix for Automotive and Other.

MMBT5401W high voltage transistor by onsemi - Datasheet Preview

Datasheet Details

Part number	MMBT5401W
Manufacturer	onsemi
File Size	72.74 KB
Description	High Voltage Transistor
Datasheet	MMBT5401W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBT5401W	Silicon PNP transistor	BLUE ROCKET ELECTRONICS
MMBT5401W	PNP Silicon Plastic-Encapsulate Transistor	SeCoS
MMBT5401	PNP Silicon Epitaxial Planar Transistor	GME
MMBT5401	150V PNP HIGH-VOLTAGE TRANSISTOR	Diodes Incorporated
MMBT5401	PNP General Purpose Amplifier	Fairchild

Other Datasheets by onsemi

Part Number	Description
MMBT5401	PNP Epitaxial Silicon Transistor
MMBT5401L	High Voltage Transistor
MMBT5401LT1G	High Voltage Transistor
MMBT5401LT3G	High Voltage Transistor
MMBT5087	PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

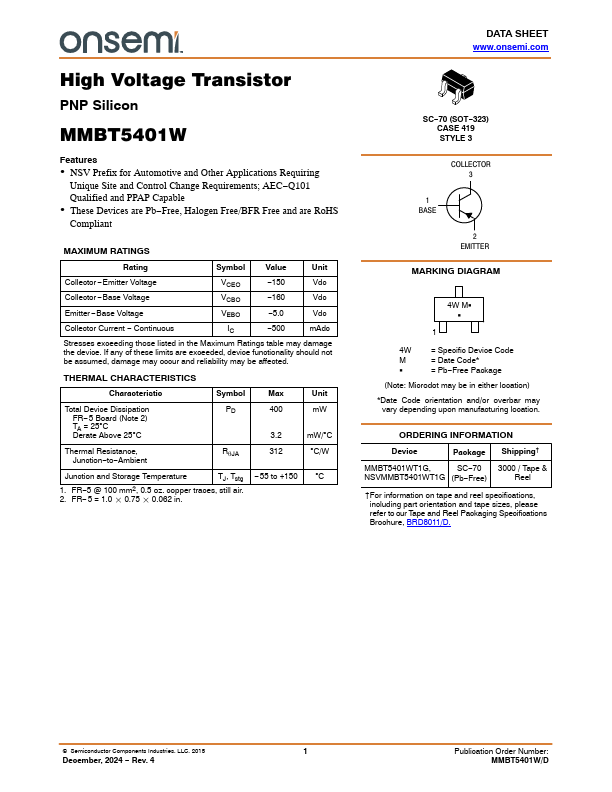

MMBT5401W High Voltage Transistor PNP Silicon Features • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector −Emitter Voltage VCEO −150 Vdc Collector −Base Voltage VCBO −160 Vdc Emitter −Base Voltage VEBO −5.0 Vdc Collector Current − Continuous IC −500 mAdc Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
