MMBTA06W - Driver Transistor

onsemi

Key Features

Moisture Sensitivity Level: 1.
ESD Rating:.
Human Body Model.
4 kV.
Machine Model.
400 V.
S Prefix for Automotive and Other.

MMBTA06W driver transistor by onsemi - Datasheet Preview

Datasheet Details

Part number	MMBTA06W
Manufacturer	onsemi
File Size	150.09 KB
Description	Driver Transistor
Datasheet	MMBTA06W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBTA06	Silicon NPN Transistor	NTE
MMBTA06	Driver Transistors	Kexin
MMBTA06	NPN General Purpose Transistor	GME
MMBTA06	Silicon NPN transistor	BLUE ROCKET ELECTRONICS
MMBTA06	NPN Transistor	HOTTECH

Other Datasheets by onsemi

Part Number	Description
MMBTA06WT1	NPN Transistor
MMBTA06L	Driver Transistors
MMBTA05L	Driver Transistors
MMBTA13L	Darlington Amplifier Transistors
MMBTA13LT1G	Darlington Amplifier Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

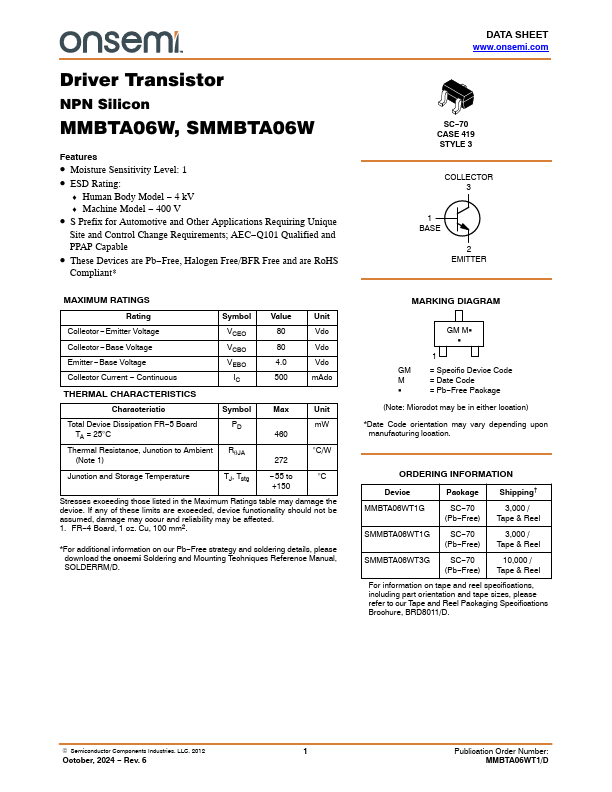

MMBTA06W, SMMBTA06W, Driver Transistor NPN Silicon Features • Moisture Sensitivity Level: 1 • ESD Rating: ♦ Human Body Model − 4 kV ♦ Machine Model − 400 V • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* MAXIMUM RATINGS Rating Symbol Value Unit Collector−Emitter Voltage Collector−Base Voltage Emitter−Base Voltage Collector Current − Continuous THERMAL CHARACTERISTICS VCEO VCBO VEBO IC 80 Vdc 80 Vdc 4.
