MMQA24VT1G - ESD Protection Diode

This page provides the datasheet information for the MMQA24VT1G, a member of the MMQA5V6T1G ESD Protection Diode family.

Product Overview

ON Semiconductor

📥 Download Datasheet

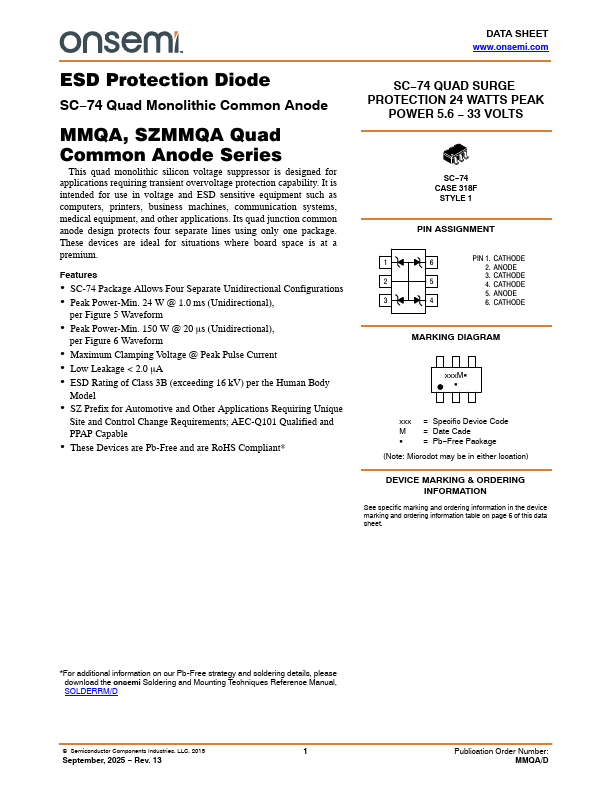

MMQA24VT1G ESD Protection Diode by ON Semiconductor - Datasheet Preview — Datasheet preview – MMQA24VT1G

Datasheet Details

Part number	MMQA24VT1G
Manufacturer	ON Semiconductor
File Size	207.42 KB
Description	ESD Protection Diode
Datasheet	MMQA24VT1G Datasheet

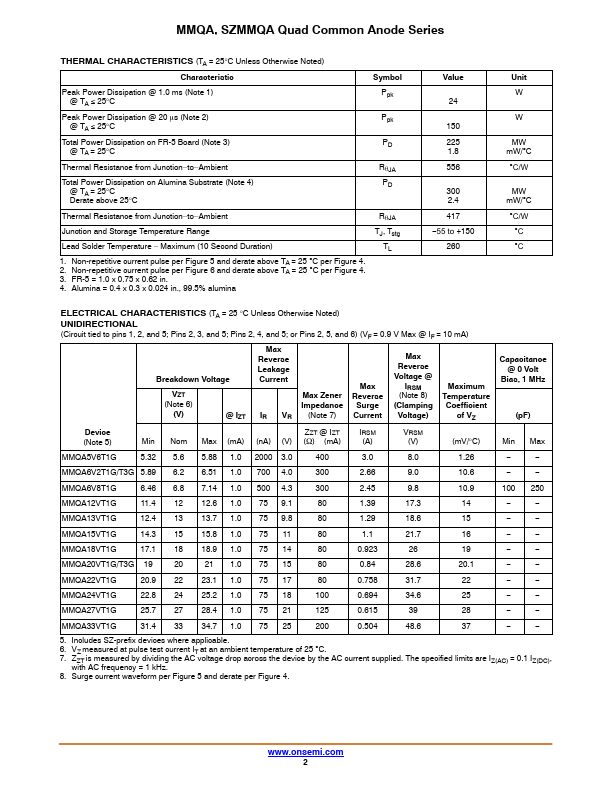

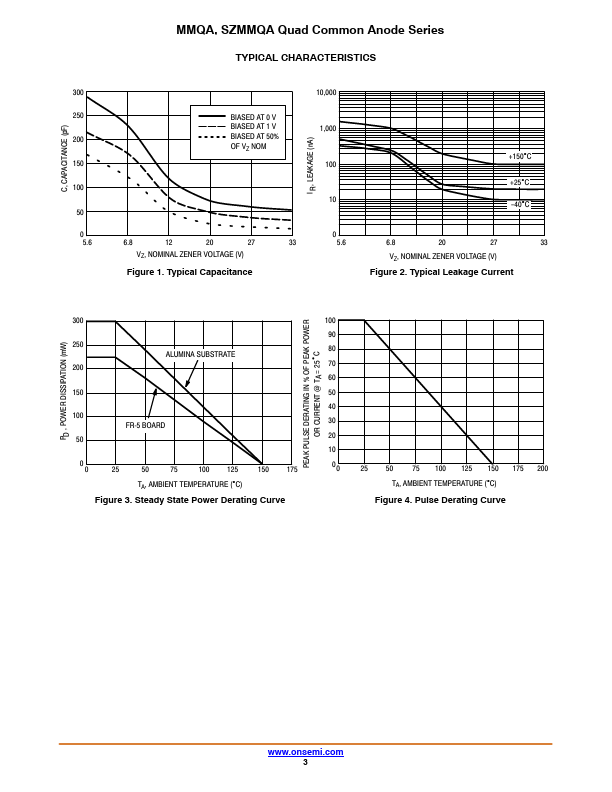

Additional preview pages of the MMQA24VT1G datasheet.

MMQA24VT1G Product details

Features

SC-74 Package Allows Four Separate Unidirectional Configurations.
Peak Power-Min. 24 W @ 1.0 ms (Unidirectional), per Figure 5 Waveform.
Peak Power-Min. 150 W @ 20 ms (Unidirectional), per Figure 6 Waveform.
Maximum Clamping Voltage @ Peak Pulse Current.
Low Leakage < 2.0 mA.
ESD Rating of Class 3B (exceeding 16 kV) per the Human Body Model.
SZ Prefix for Automotive and Other.
