MMQA27VT3G - ESD Protection Diode

This page provides the datasheet information for the MMQA27VT3G, a member of the MMQA5V6T1G ESD Protection Diode family.

Product Overview

ON Semiconductor

📥 Download Datasheet

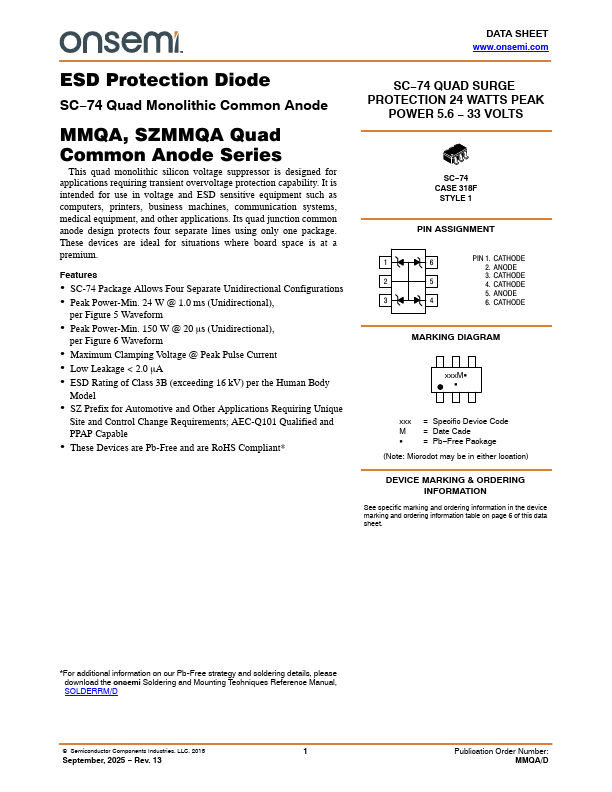

MMQA27VT3G ESD Protection Diode by ON Semiconductor - Datasheet Preview — Datasheet preview – MMQA27VT3G

Datasheet Details

Part number	MMQA27VT3G
Manufacturer	ON Semiconductor
File Size	207.42 KB
Description	ESD Protection Diode
Datasheet	MMQA27VT3G Datasheet

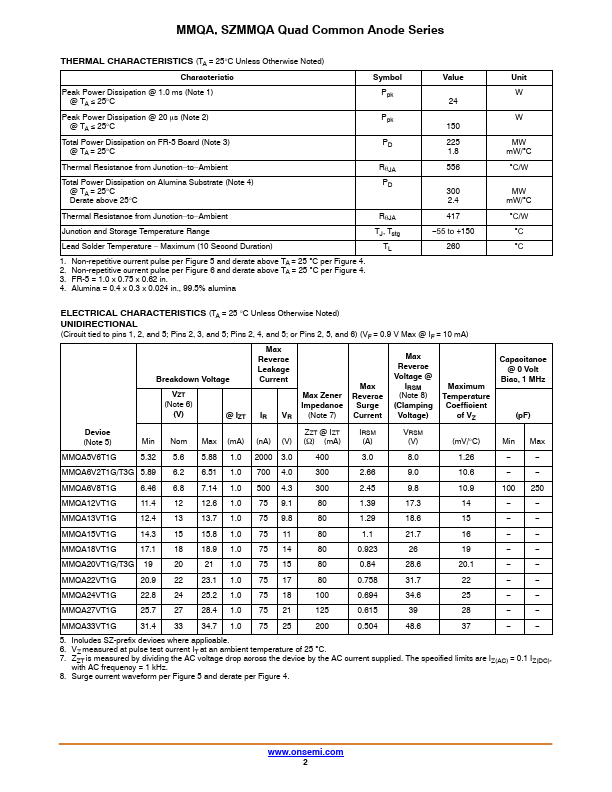

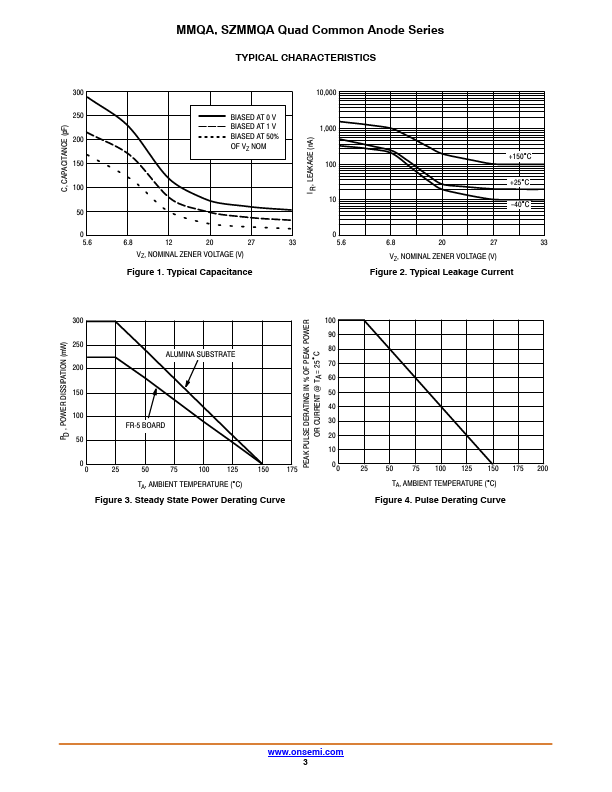

Additional preview pages of the MMQA27VT3G datasheet.

MMQA27VT3G Product details

Features

SC-74 Package Allows Four Separate Unidirectional Configurations.
Peak Power-Min. 24 W @ 1.0 ms (Unidirectional), per Figure 5 Waveform.
Peak Power-Min. 150 W @ 20 ms (Unidirectional), per Figure 6 Waveform.
Maximum Clamping Voltage @ Peak Pulse Current.
Low Leakage < 2.0 mA.
ESD Rating of Class 3B (exceeding 16 kV) per the Human Body Model.
SZ Prefix for Automotive and Other.
