MMQA27VT1G Datasheet Esd Protection Diode

Manufacturer: onsemi

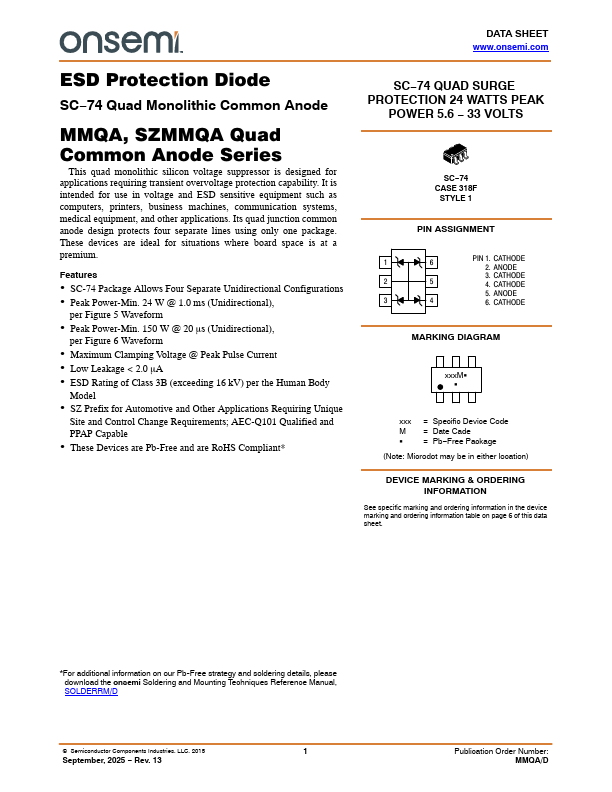

Overview: DATA SHEET .onsemi. ESD Protection Diode SC−74 Quad Monolithic mon Anode MMQA, SZMMQA Quad mon Anode Series This quad monolithic silicon voltage suppressor is designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as puters, printers, business machines, munication systems, medical equipment, and other applications. Its quad junction mon anode design protects four separate lines using only one package. These devices are ideal for situations where board space is at a premium.

This datasheet includes multiple variants, all published together in a single manufacturer document.

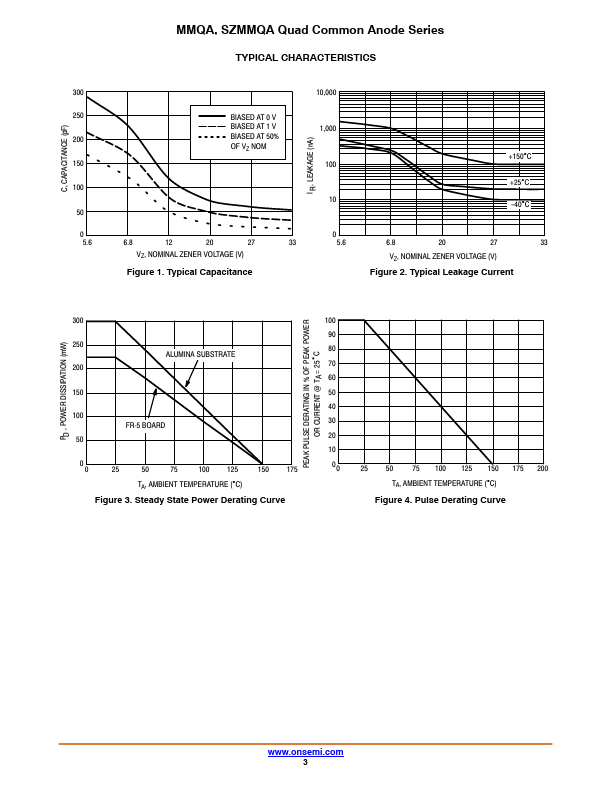

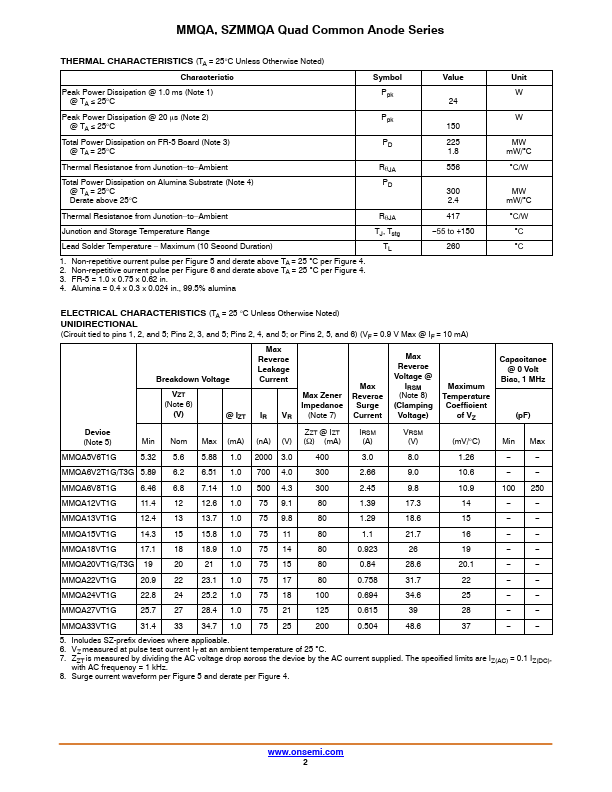

Key Features

  • SC-74 Package Allows Four Separate Unidirectional Configurations.
  • Peak Power-Min. 24 W @ 1.0 ms (Unidirectional), per Figure 5 Waveform.
  • Peak Power-Min. 150 W @ 20 ms (Unidirectional), per Figure 6 Waveform.
  • Maximum Clamping Voltage @ Peak Pulse Current.
  • Low Leakage < 2.0 mA.
  • ESD Rating of Class 3B (exceeding 16 kV) per the Human Body Model.
  • SZ Prefix for Automotive and Other.
