NCV20071 Datasheet Operational Amplifier

Manufacturer: onsemi

📥 Download Datasheet

Datasheet Details

Part number NCV20071
Manufacturer onsemi
File Size 916.91 KB
Description Operational Amplifier
Datasheet download datasheet NCV20071 Datasheet

Overview

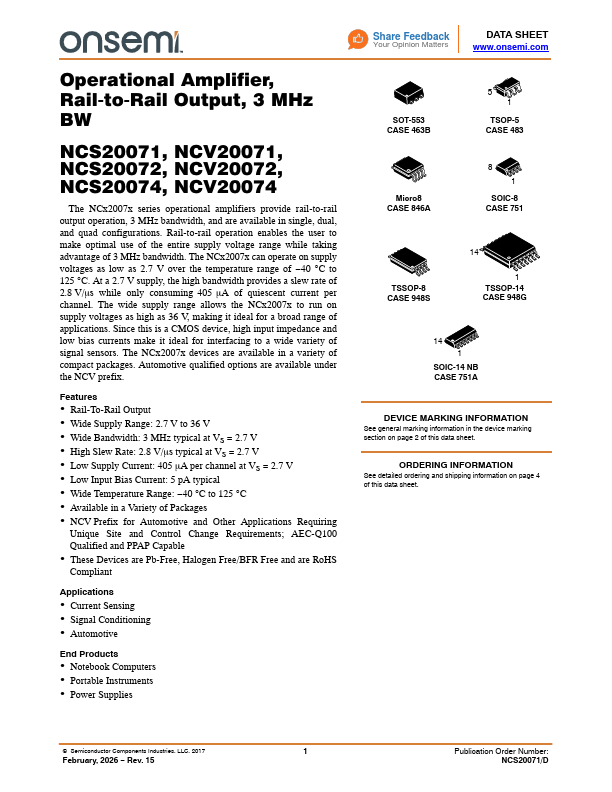

NCS20071, NCV20071, NCS20072, NCV20072, NCS20074, NCV20074 Operational Amplifier, Rail-to-Rail Output, 3 MHz BW The NCx2007x series operational amplifiers provide rail−to−rail output operation, 3 MHz bandwidth, and are available in single, dual, and quad configurations.

Rail−to−rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3 MHz bandwidth.

The NCx2007x can operate on supply voltages as low as 2.7 V over the temperature range of −40°C to 125°C.

Key Features

  • Rail.
  • To.
  • Rail Output.
  • Wide Supply Range: 2.7 V to 36 V.
  • Wide Bandwidth: 3 MHz typical at VS = 2.7 V.
  • High Slew Rate: 2.8 V/ms typical at VS = 2.7 V.
  • Low Supply Current: 405 mA per channel at VS = 2.7 V.
  • Low Input Bias Current: 5 pA typical.
  • Wide Temperature Range:.
  • 40°C to 125°C.
  • Available in a variety of packages.
  • NCV Prefix for Automotive and Other.
