NCV20074 - Operational Amplifier

This page provides the datasheet information for the NCV20074, a member of the NCV20071 Operational Amplifier family.

Product Overview

ON Semiconductor

📥 Download Datasheet

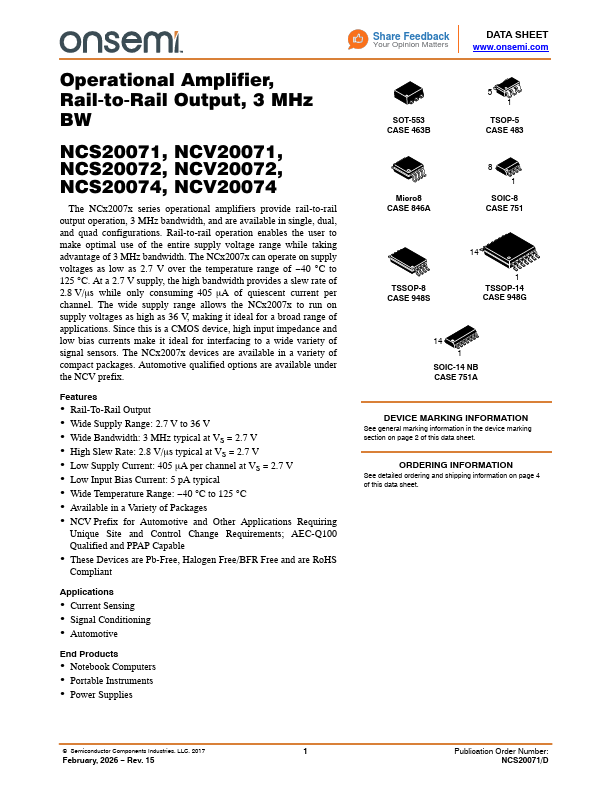

NCV20074 Operational Amplifier by ON Semiconductor - Datasheet Preview — Datasheet preview – NCV20074

Datasheet Details

Part number	NCV20074
Manufacturer	ON Semiconductor
File Size	916.91 KB
Description	Operational Amplifier
Datasheet	NCV20074 Datasheet
Additional preview pages of the NCV20074 datasheet.

NCV20074 Product details

Features

Rail.
To.
Rail Output.
Wide Supply Range: 2.7 V to 36 V.
Wide Bandwidth: 3 MHz typical at VS = 2.7 V.
High Slew Rate: 2.8 V/ms typical at VS = 2.7 V.
Low Supply Current: 405 mA per channel at VS = 2.7 V.
Low Input Bias Current: 5 pA typical.
Wide Temperature Range:.
40°C to 125°C.
Available in a variety of packages.
NCV Prefix for Automotive and Other.
