NCV20072 - Operational Amplifier

Product Overview

ON Semiconductor

📥 Download Datasheet

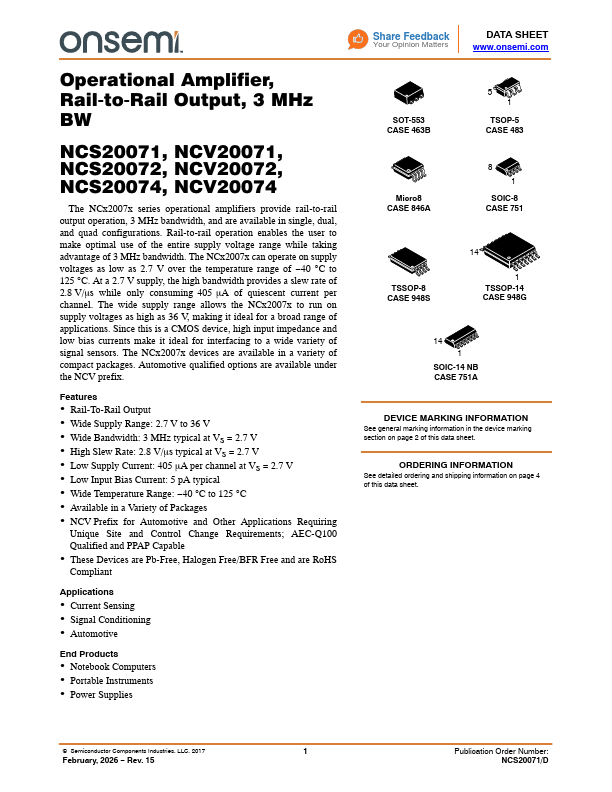

NCV20072 Operational Amplifier by ON Semiconductor - Datasheet Preview — Datasheet preview – NCV20072

Datasheet Details

Part number	NCV20072
Manufacturer	ON Semiconductor
File Size	916.91 KB
Description	Operational Amplifier
Datasheet	NCV20072 Datasheet
Note	This datasheet PDF includes multiple part numbers: NCV20072, NCV20071. Please refer to the document for exact specifications by model.
Additional preview pages of the NCV20072 datasheet.

Product details

Features

Rail.
To.
Rail Output.
Wide Supply Range: 2.7 V to 36 V.
Wide Bandwidth: 3 MHz typical at VS = 2.7 V.
High Slew Rate: 2.8 V/ms typical at VS = 2.7 V.
Low Supply Current: 405 mA per channel at VS = 2.7 V.
Low Input Bias Current: 5 pA typical.
Wide Temperature Range:.
40°C to 125°C.
Available in a variety of packages.
NCV Prefix for Automotive and Other.
