| Part number | NSBA114YF3 |
|---|---|
| Datasheet | NSBA114YF3-ONSemiconductor.pdf |
| File Size | 630.64 KB |
| Manufacturer | onsemi |
| Description | Digital Transistors |
|
|

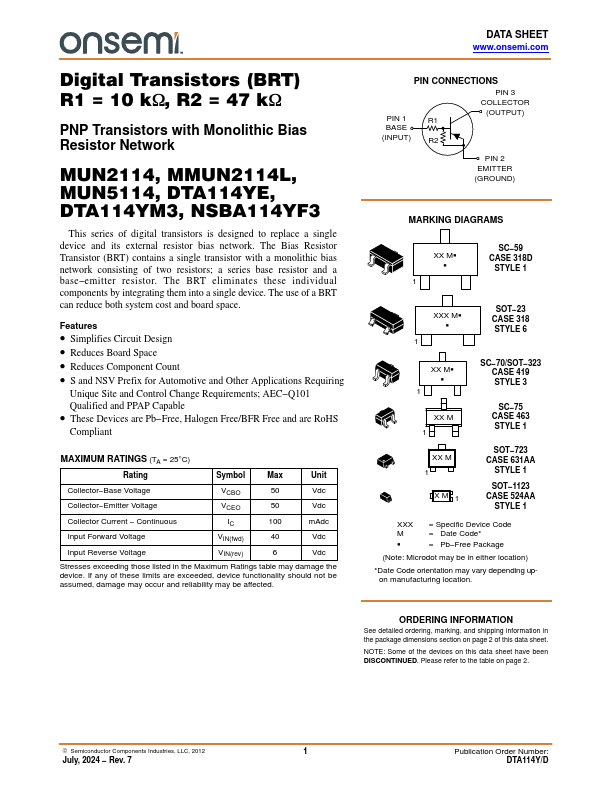

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device.
| Part Number | Description |
|---|---|
| NSBA114EDP6 | Dual PNP Bias Resistor Transistors |
| NSBA114EDXV6 | Dual PNP Bias Resistor Transistors |
| NSBA114EF3 | Digital Transistors |
| NSBA114TDP6 | Dual PNP Bias Resistor Transistors |
| NSBA114TDXV6 | Dual PNP Bias Resistor Transistors |
| NSBA114TF3 | Digital Transistors |
| NSBA113EDXV6 | Dual PNP Bias Resistor Transistors |
| NSBA113EF3 | Digital Transistors |
| NSBA115EDXV6 | Dual PNP Bias Resistor Transistors |
| NSBA115EDXV6T1 | (NSBA114EDXV6T5 Series) Dual Bias Resistor Transistors |
