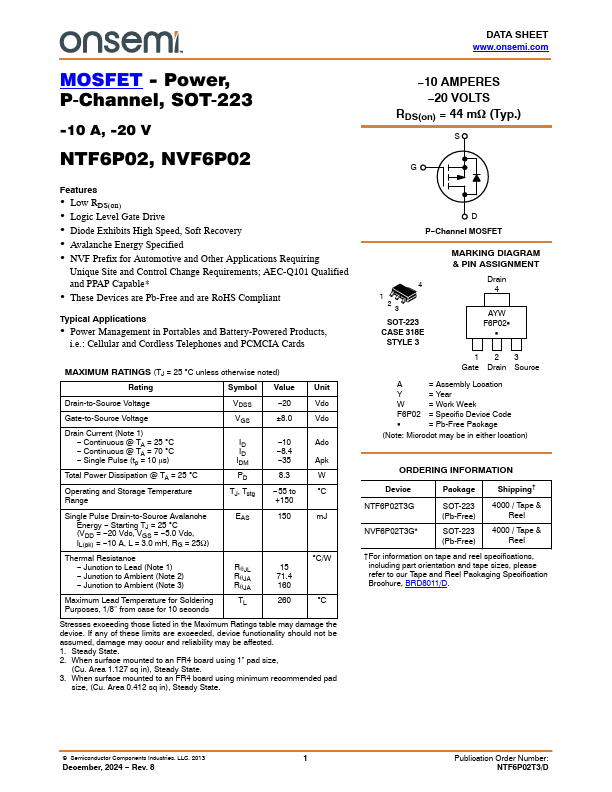

NTF6P02, NVF6P02
MOSFET – Power, P-Channel, SOT-223
-10 A, -20 V
Features
• Low RDS(on) • Logic Level Gate Drive • Diode Exhibits High Speed, Soft Recovery • Avalanche Energy Specified • NVF Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*
• These Devices are Pb−Free and are RoHS Compliant
Typical Applications
• Power Management in Portables and Battery−Powered Products,
i.e.: Cellular and Cordless Telephones and PCMCIA Cards
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Rating
Symbol Value
Drain−to−Source Voltage
VDSS
−20
Gate−to−Source Voltage
VGS ±8.0
Drain Current (Note 1) − Continuous @ TA = 25°C − Continuous @ TA = 70°C − Single Pulse (tp = 10 ms)
ID −10 ID −8.
