SBAW56WT1G - Dual Switching Diode

Features

  • S Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet preview – SBAW56WT1G

Datasheet Details

Part number SBAW56WT1G
Manufacturer ON Semiconductor
File Size 57.36 KB
Description Dual Switching Diode
Datasheet download datasheet SBAW56WT1G Datasheet

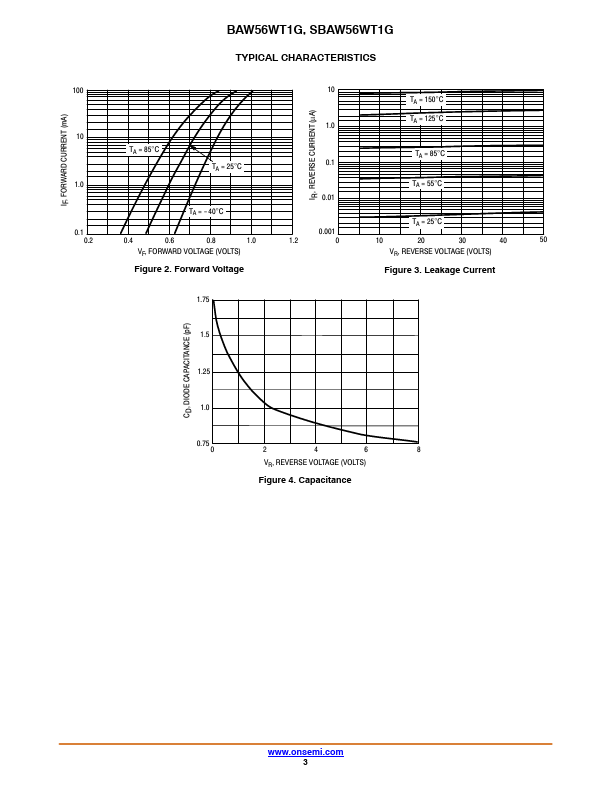

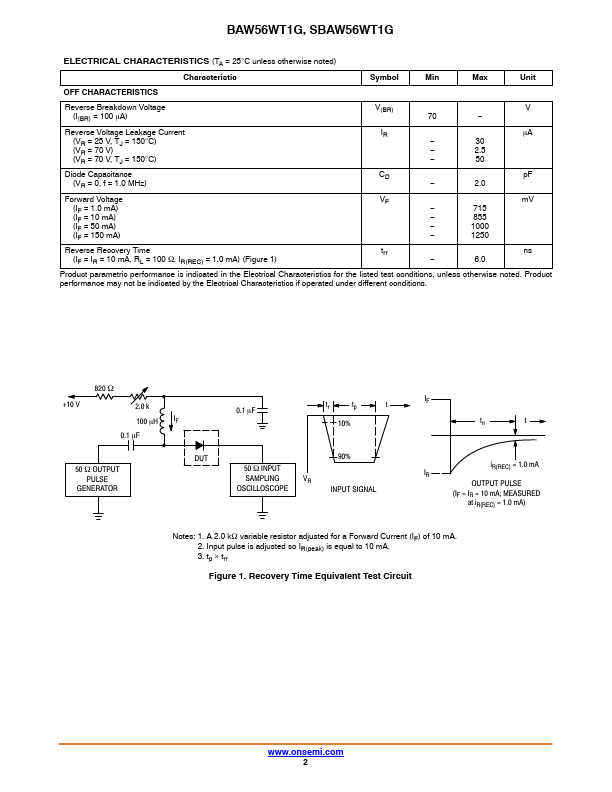

Additional preview pages of the SBAW56WT1G datasheet.

📁 Similar Datasheet

  • SBA-4086 - Cascadable InGaP/GaAs HBT MMIC Amplifier (Sirenza Microdevices)
  • SBA-4086Z - Cascadable InGaP/GaAs HBT MMIC Amplifier (Sirenza Microdevices)
  • SBA-4089 - Cascadable InGaP/GaAs HBT MMIC Amplifier (Sirenza Microdevices)
  • SBA-4089Z - Cascadable InGaP/GaAs HBT MMIC Amplifier (Sirenza Microdevices)
  • SBA-5089 - Cascadable InGaP/GaAs HBT MMIC Amplifier (Sirenza Microdevices)
  • SBA-5089Z - Cascadable InGaP/GaAs HBT MMIC Amplifier (Sirenza Microdevices)
  • SBA0520Q - EXTREME LOW VF SCHOTTKY RECTIFIER (Pan Jit International)
  • SBA0530Q - EXTREME LOW VF SCHOTTKY RECTIFIER (Pan Jit International)
  • SBA0540Q - EXTREME LOW VF SCHOTTKY RECTIFIER (Pan Jit International)
  • SBA100-04J - 40V 10A Rectifier (Sanyo Semicon Device)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

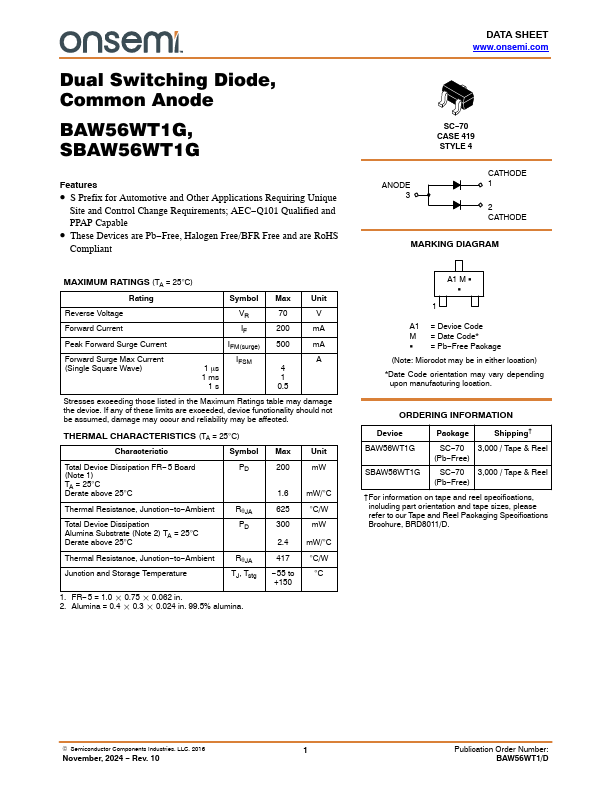

BAW56WT1G, SBAW56WT1G Dual Switching Diode, Common Anode Features • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C) Rating Symbol Max Unit Reverse Voltage VR 70 V Forward Current IF 200 mA Peak Forward Surge Current IFM(surge) 500 mA Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
