GWCSSRM3.CM - high-power LED

Features

  • - Package: SMD ceramic package with silicone lens  - Typ. Radiation: 120° (Lambertian emitter) - Corrosion Robustness Class: 3B - Color temperature: 5000K - 6500K - CRI: 90 (min. ), 92 (typ. ), R9: 50 (min. ) - ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) - TLCI: 98 (typ. ), R9: 80 (min. ) @ 5700 K - Luminous Flux: typ. 288 lm @ 5700 K, 85 °C - Luminous Efficacy: typ. 146 lm @ 5700 K, 85 °C  2 | Version 1.1 | 2024-04-15 GW CSSRM3.CM.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GWCR01005 Green Thick-Film Chip Resistors TT
GWCR0201 Green Thick-Film Chip Resistors TT
GWCR0402 Green Thick-Film Chip Resistors TT
GWCR0603 Green Thick-Film Chip Resistors TT
GWCR0805 Green Thick-Film Chip Resistors TT

Other Datasheets by ams OSRAM

Part Number Description
GWCSSRM3.PM high-power LED
GWCSSRM2.EM LED
GWCSSRM2.PM LED

Full PDF Text Transcription

Click to expand full text

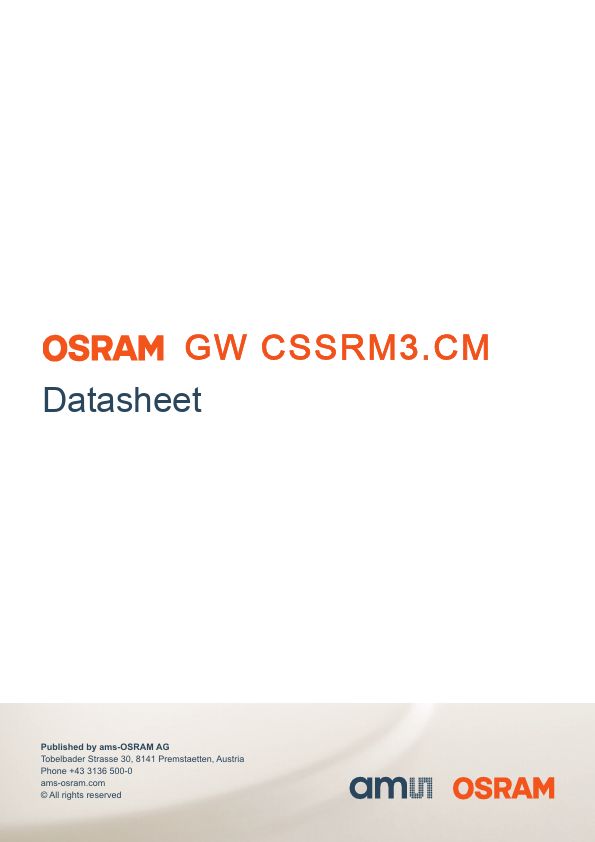

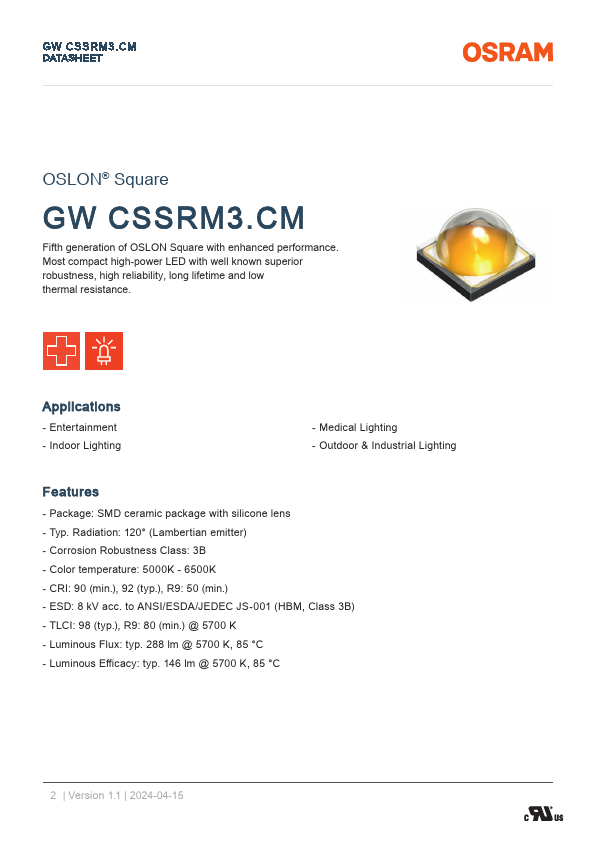

www.osram-os.com GW CSSRM3.CM DATASHEET GW CSSRM3.CM Datasheet  Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © A1ll r|igVhetsrsreiosnerv1e.1d | 2024-04-15  GW CSSRM3.CM DATASHEET OSLON® Square GW CSSRM3.CM Fifth generation of OSLON Square with enhanced performance. Most compact high-power LED with well known superior robustness, high reliability, long lifetime and low thermal resistance. Applications - Entertainment - Indoor Lighting - Medical Lighting - Outdoor & Industrial Lighting Features - Package: SMD ceramic package with silicone lens  - Typ. Radiation: 120° (Lambertian emitter) - Corrosion Robustness Class: 3B - Color temperature: 5000K - 6500K - CRI: 90 (min.), 92 (typ.), R9: 50 (min.) - ESD: 8 kV acc.
