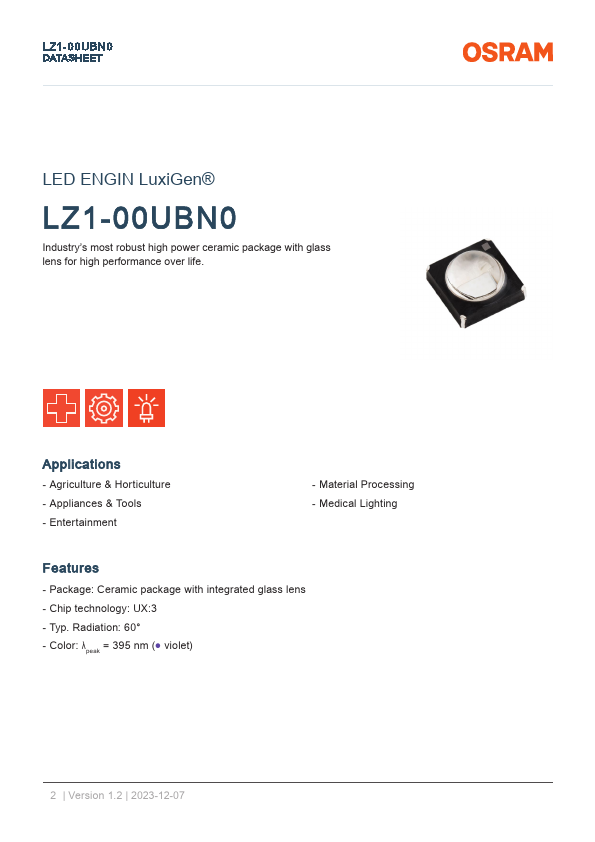

LZ1-00UBN0
Features
- Package: Ceramic package with integrated glass lens
- Chip technology: UX:3
- Typ. Radiation: 60°
- Color: λpeak = 395 nm (- violet)
2 | Version 1.2 | 2023-12-07
L Z1- 0 0 U B N 0 DATASHEET

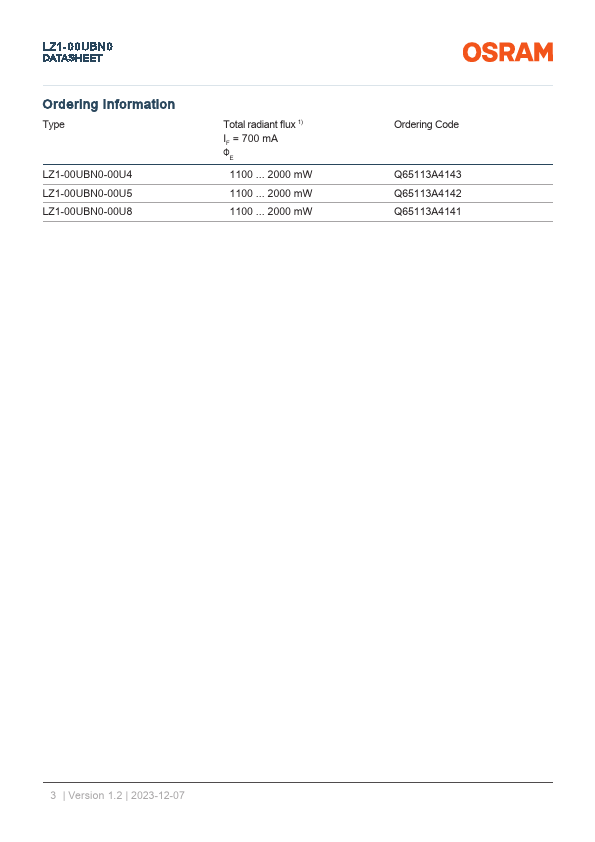

Ordering Information
Type
LZ1-00UBN0-00U4 LZ1-00UBN0-00U5 LZ1-00UBN0-00U8
Total radiant flux 1) IF = 700 m A ΦE
1100 ... 2000 m W
1100 ... 2000 m W
1100 ... 2000 m W
Ordering Code
Q65113A4143 Q65113A4142 Q65113A4141
3 | Version 1.2 | 2023-12-07
L Z1- 0 0 U B N 0 DATASHEET
Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature 2) Forward Current 2) Forward Current pulsed t ≤ 10 µs; D ≤ 0.01 ; TC = 25 °C ESD withstand voltage acc. ANSI/ESDA/JEDEC JS-001 (HBM, Class 0) Reverse voltage 3)
Symbol Top
Tstg
Tj IF IF pulse
VESD
VR min. max. min. max. max. max. max.
Values
-30 °C 100 °C -40 °C 125 °C 115 °C 700 m A 1000 m A
ESD sensitive device
Not designed for reverse operation
4 | Version 1.2 | 2023-12-07
L Z1- 0 0 U B N 0 DATASHEET
Charact...
