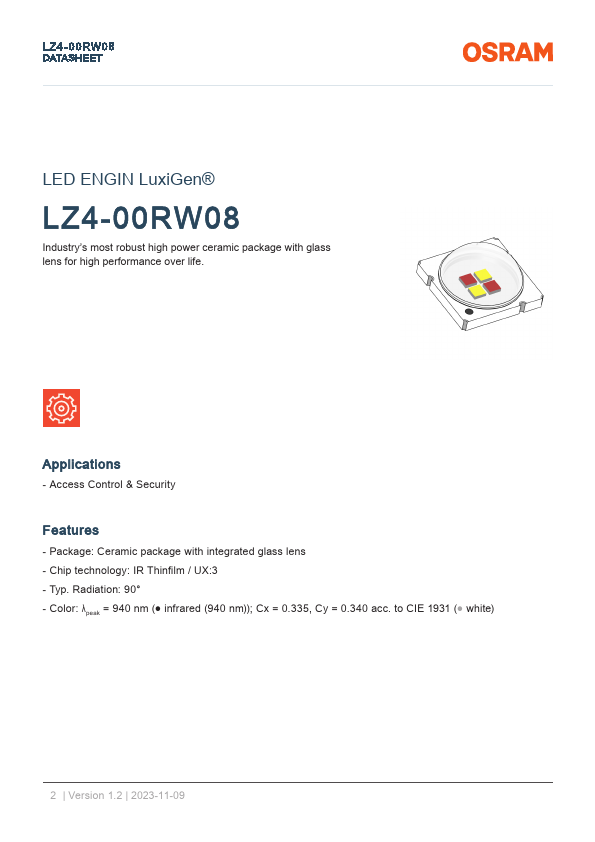

LZ4-00RW08
LZ4-00RW08 is LED manufactured by ams OSRAM.
Features
- Package: Ceramic package with integrated glass lens
- Chip technology: IR Thinfilm / UX:3
- Typ. Radiation: 90°
- Color: λpeak = 940 nm (- infrared (940 nm)); Cx = 0.335, Cy = 0.340 acc. to CIE 1931 (- white)
2 | Version 1.2 | 2023-11-09
LZ4-00RW08 DATASHEET
Ordering Information
Type
LZ4-00RW08-R755
- infrared (940 nm)
- white
Brightness 1)
- ΦE = 1 2.4 W (IF = 700 m A)
- ΦV = 356 ... 556 lm (IF = 700 m A)
Ordering Code
Q65113A0525 Q65113A0525 Q65113A0525
3 | Version 1.2 | 2023-11-09
LZ4-00RW08 DATASHEET

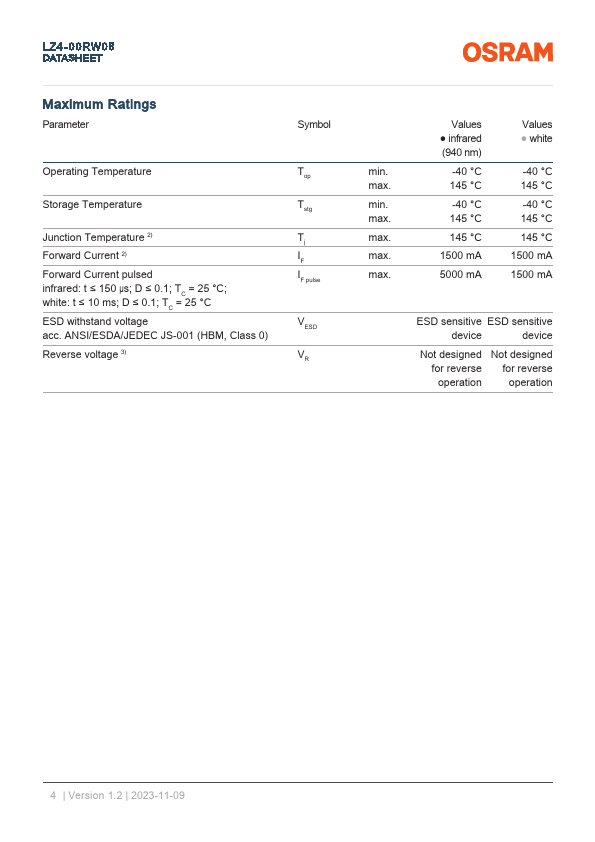

Maximum Ratings
Parameter
Symbol
Operating Temperature
Storage Temperature
Junction Temperature 2) Forward Current 2) Forward Current pulsed infrared: t ≤ 150 μs; D ≤ 0.1; TC = 25 °C; white: t ≤ 10 ms; D ≤ 0.1; TC = 25 °C ESD withstand voltage acc. ANSI/ESDA/JEDEC JS-001 (HBM, Class 0) Reverse voltage 3)
Top Tstg Tj IF IF pulse
VESD VR min. max. min. max. max. max. max.
Values
- infrared (940 nm)
-40 °C 145 °C
-40 °C 145 °C
145 °C
1500 m A
5000 m A
Values
-...
