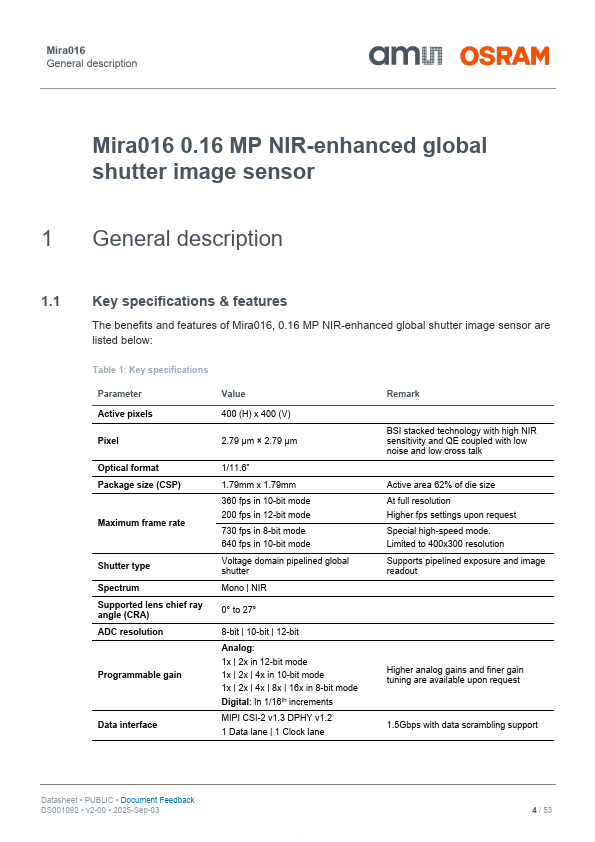

description Mira016 0.16 MP NIR-enhanced global shutter image sensor 1 General description Key specifications & features The benefits and features of Mira016, 0.16 MP NIR-enhanced global shutter image sensor are listed below: Table 1: Key specifications Parameter Active pixels Value 400 (H) x 400 (V) Pixel 2.79 µm × 2.79 µm Optical format Package size (CSP) Maximum frame rate Shutter type Spectrum Supported lens chief ray angle (CRA) ADC resolution Programmable gain Data interface 1/11.6” 1.79mm x 1.79mm 360 fps in 10-bit mode 200 fps in 12-bit mode 730 fps in 8-bit mode 640 fps in 10-bit mode Voltage domain pipelined global shutter Mono | NIR 0° to 27° 8-bit | 10-bit | 12-bit Analog: 1x | 2x in 12-bit mode 1x | 2x | 4x in 10-bit mode 1x | 2x | 4x | 8x | 16x in 8-bit mode Digital: In 1/16th increments MIPI CSI-2 v1.3 DPHY v1.2 1 Data lane | 1 Clock lane Remark BSI stacked technology with high NIR sensitivity and QE coupled with low noise and low cross talk Active area 62% of die size At full resolution Higher fps settings upon request Special high-speed mode. Limited to 400x300 resolution Supports pipelined exposure and image readout Higher analog gains and finer gain tuning are available upon request 1.5Gbps with data scrambling support - PUBLIC - Document Feedback DS001092 - v2-00 - 2025-Sep-03 / 4 / 53 Mira016 General description Table 2: Added value of using Mira016 Features High sensitivity and NIR enhanced pixel Context switching On-chip processing On-chip advanced power management On-chip temperature sensor Illumination synchronization trigger Fast ADC with analog and digital CDS Benefits High sensitivity and pact pixel size achieved via state-of-the-art BSI technology with NIR enhancement allowing to use lower power illuminators Two register contexts for on-the-fly configuration changes to exposure and readout settings without interrupting the video stream - Defect pixel detection and correction on-chip - Image statistics...
