SFH2430 Datasheet | ams OSRAM

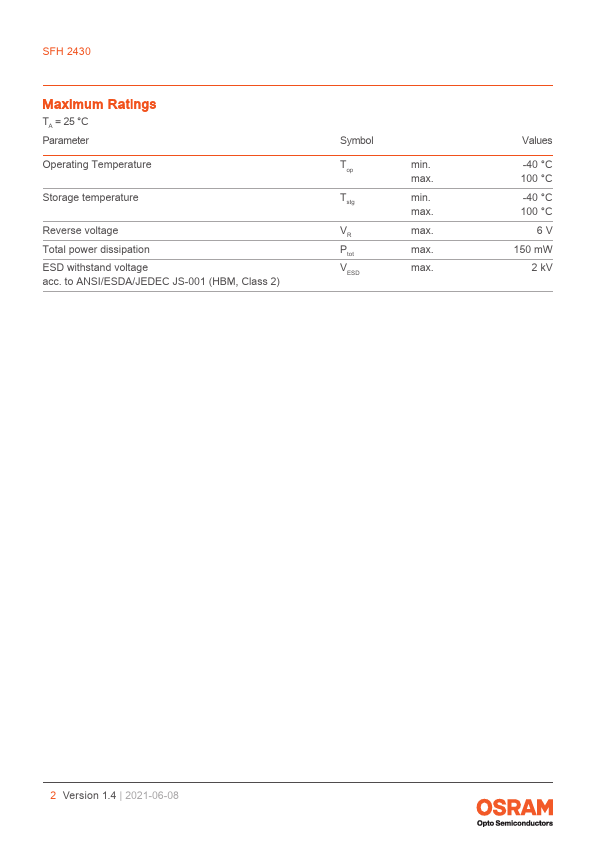

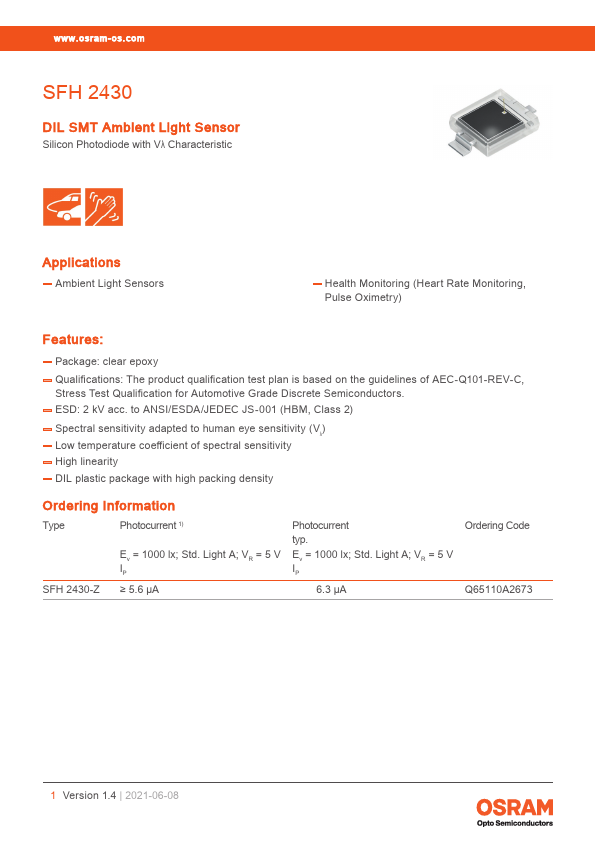

Features : - Package: clear epoxy - Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors. - ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) - Spectral sensitivity adapted to human eye sensitivity (Vλ) - Low temperature coefficient of spectral sensitivity - High linearity - DIL plastic package with high packing density Ordering Information  Type  Photocurrent 1) Ev = 1000 lx; Std. Light A; VR = 5 V IP SFH 2430-Z ≥ 5.6 µA Photocurrent  typ. Ev = 1000 lx; Std. Light A; VR = 5 V IP 6.3 µA Ordering Code Q65110A2673  1 Version 1.4 | 2021-06-08 SFH 2430   Maximum Ratings TA = 25 °C Parameter Operating Temperature Storage temperature Reverse voltage Total power dissipation ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) Symbol Top Tstg VR Ptot VESD min. max. min. max. max. max. max. Values -40 °C 100 °C -40 °C 100 °C 6V 150 m W 2 k V   2 Version 1.4 | 2021-06-08 SFH 2430   Characteristics TA = 25 °C Parameter Spectral sensitivity VR = 5 V; Std. Light A; T = 2856 K Wavelength of max sensitivity Spectral range of sensitivity Radiant sensitive area Dimensions of active chip area Half angle Dark current VR = 5 V Spectral sensitivity of the chip λ = 550 nm Short-circuit current Ev = 1000 lx; Std. Light A; VR = 0 V Rise time VR = 5 V; RL = 50 Ω; λ = 550 nm Fall time VR = 5 V; RL = 50 Ω; λ = 550 nm Forward voltage IF = 100 m A; E = 0 Capacitance  VR = 0 V; f = 1 MHz; E =...
