SFH4171

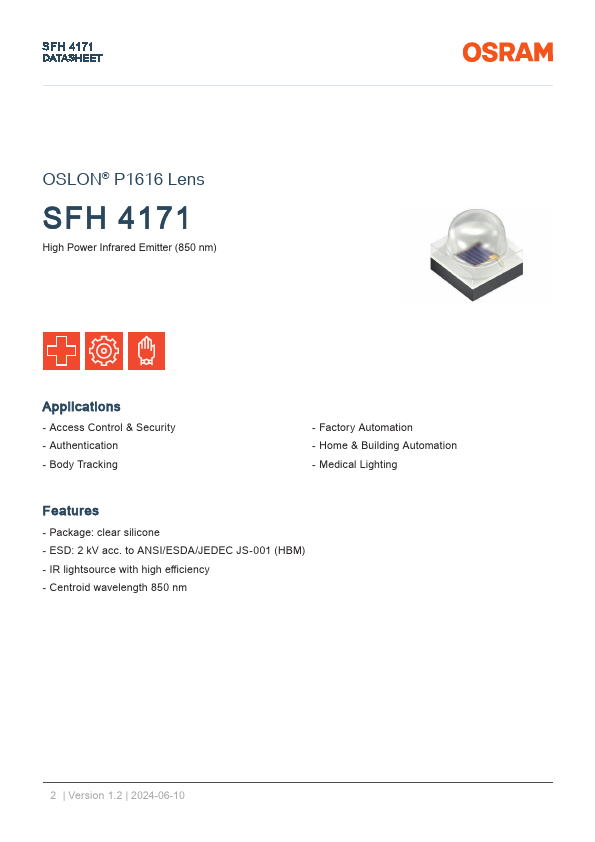

Features
- Package: clear silicone
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
- IR lightsource with high efficiency
- Centroid wavelength 850 nm
2 | Version 1.2 | 2024-06-10
SFH 4171 DATASHEET

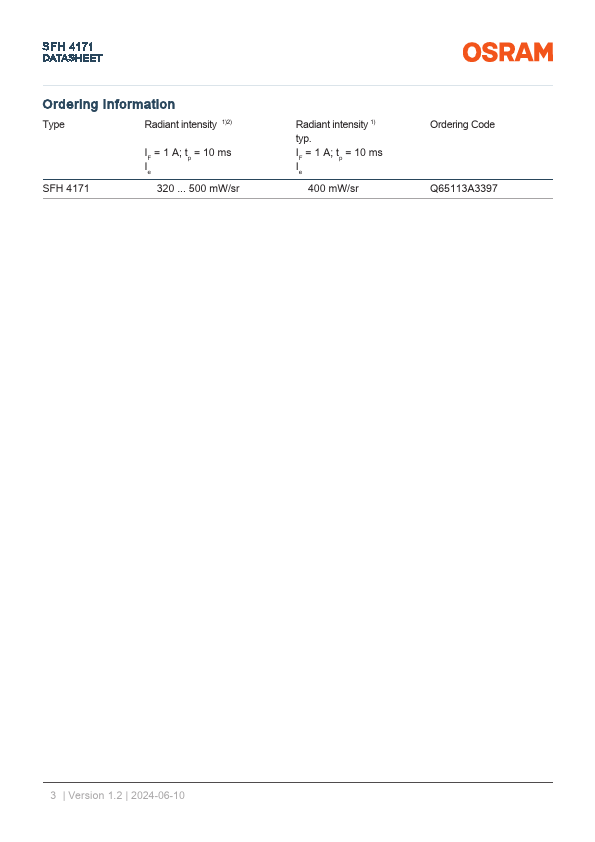

Ordering Information
Type
Radiant intensity 1)2)
SFH 4171
IF = 1 A; tp = 10 ms Ie
320 ... 500 m W/sr
Radiant intensity 1) typ. IF = 1 A; tp = 10 ms Ie
400 m W/sr
Ordering Code Q65113A3397
3 | Version 1.2 | 2024-06-10
SFH 4171 DATASHEET
Maximum Ratings
TA = 25 °C Parameter
Operating temperature
Storage temperature
Junction temperature Forward current Forward current pulsed Reverse voltage 3) ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
Symbol Top
Tstg
Tj IF IF pulse VR VESD min. max. min. max. max. max. max. max. max.
Values
-40 °C 105 °C -40 °C 105 °C 145 °C 1000 m A 1000 m A
5V 2 k V
Note: For the forward current and power consumption please see “maximum permissible forward current” diagram.
4 | Version 1.2 | 2024-06-10
SFH 4171 DATASHEET
Charac...
