SFH5721 Overview

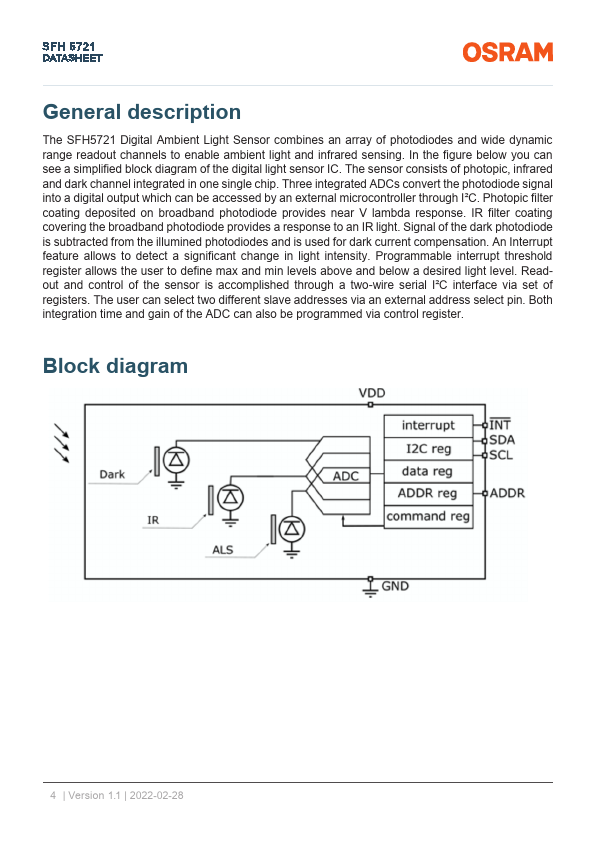

The SFH5721 Digital Ambient Light Sensor bines an array of photodiodes and wide dynamic range readout channels to enable ambient light and infrared sensing. In the figure below you can see a simplified block diagram of the digital light sensor IC. The sensor consists of photopic, infrared and dark channel integrated in one single chip.
SFH5721 Key Features
- Package: clear epoxy
- ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
- Adapted to human eye sensitivity (Vλ)
- Integrated and independent Infrared Detection Channel
- I²C Interface
- supports two I²C slave addresses
- Zero dark count value
- 16 Bit ADC resolution
- Bypass capacitors for Vdd are required for proper operation of the device
- Proposed size for pull-up resistors Rp1, Rp2 and Rp3 are 10kOhm
