OD8025-24HB
OD8025-24HB is DC Fans manufactured by Orion Fans.
- Part of the OD8025-12HHB comparator family.
- Part of the OD8025-12HHB comparator family.

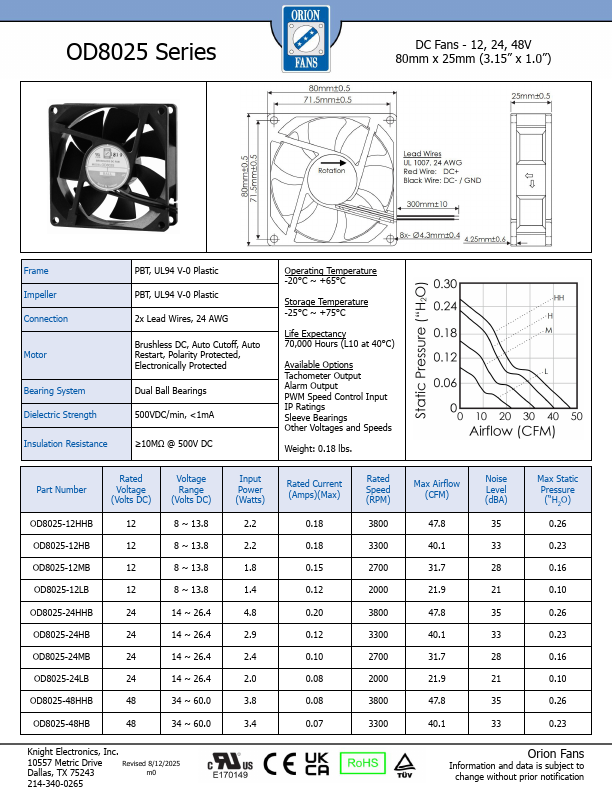

OD8025 Series
DC Fans
- 12, 24, 48V 80mm x 25mm (3.15” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Dual Ball Bearings 500VDC/min, <1m A
≥10MΩ @ 500V DC
Operating Temperature -20°C ~ +65°C
Storage Temperature -25°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options Tachometer Output Alarm Output PWM Speed Control Input IP Ratings Sleeve Bearings Other Voltages and Speeds
Weight: 0.18 lbs.
Part Number
Rated Voltage (Volts DC)
OD8025-12HHB
OD8025-12HB
OD8025-12MB
OD8025-12LB
OD8025-24HHB
OD8025-24MB
OD8025-24LB
OD8025-48HHB
OD8025-48HB
Voltage Range (Volts DC)
8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 14 ~ 26.4 14 ~ 26.4 14 ~ 26.4 14 ~ 26.4 34 ~ 60.0 34 ~ 60.0
Input Power (Watts)
2.2 2.2 1.8 1.4 4.8 2.9 2.4 2.0 3.8...
