BAV99W - SURFACE MOUNT SWITCHING DIODES

Download the BAV99W datasheet PDF. This datasheet also covers the BAV70W variant, as both devices belong to the same surface mount switching diodes family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Fast switching speed.
  • Surface mount package Ideally Suited for Automatic insertion.
  • Electrically Identical to Standard JEDEC.
  • High Conductance.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAV70W-PANJIT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAV99W FAST SWITCHING DIODE SMC Diode
BAV99W SURFACE MOUNT FAST SWITCHING DIODE Sunmate
BAV99W Switching Diodes Toshiba
BAV99W Switching Diode Array Taiwan Semiconductor
BAV99W Silicon Switching Diode Infineon

Other Datasheets by PanJit Semiconductor

Part Number Description
BAV70W SURFACE MOUNT SWITCHING DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

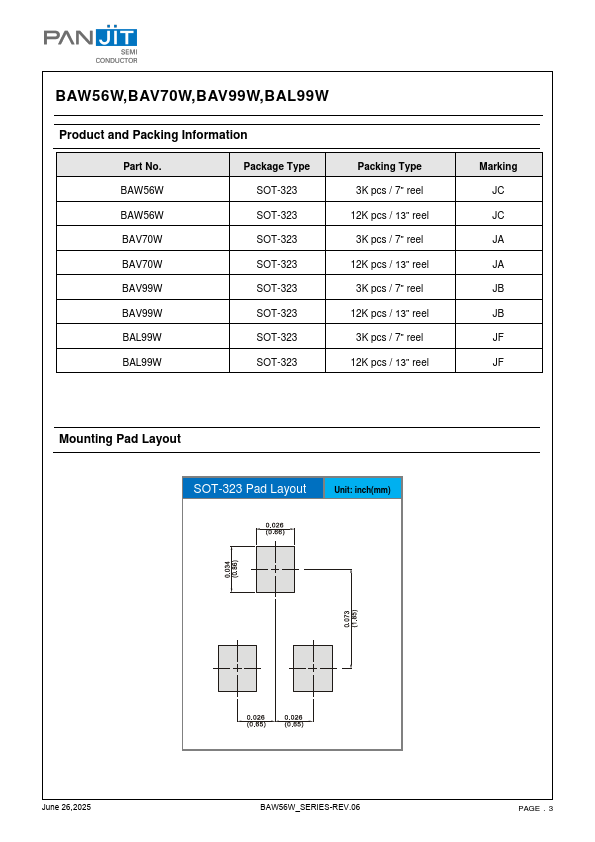

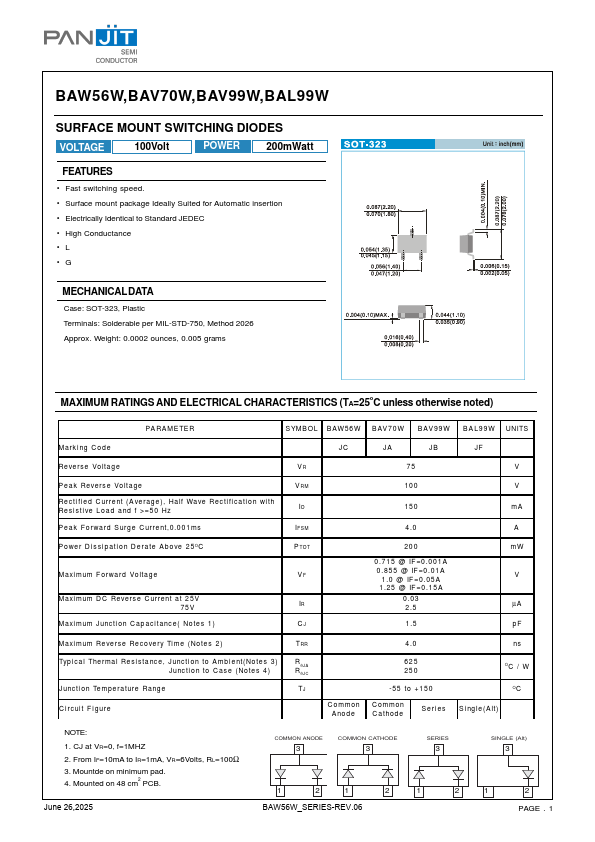

BAL99W, BAW56W, BAV70W, BAV99W SURFACE MOUNT SWITCHING DIODES VOLTAGE 75 Volts POWER 200mWatts PACKAGE FEATURES • Fast switching speed. • Surface mount package Ideally Suited for Automatic insertion • Electrically Identical to Standard JEDEC • High Conductance MECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Marking : JF, JC, JA, JG SOT-323 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
