L-180GC-TR9 is Dome Lens AXIAL SMD LED manufactured by PARA LIGHT.
Crest Technologies Pty Ltd 46/41-49 Norcal Rd Nunawading 3131 Australia Tel: (03) 9873 8830 Fax: (03) 9873 8799 Email: sales@cresttech..au Web: http://.cresttech..au

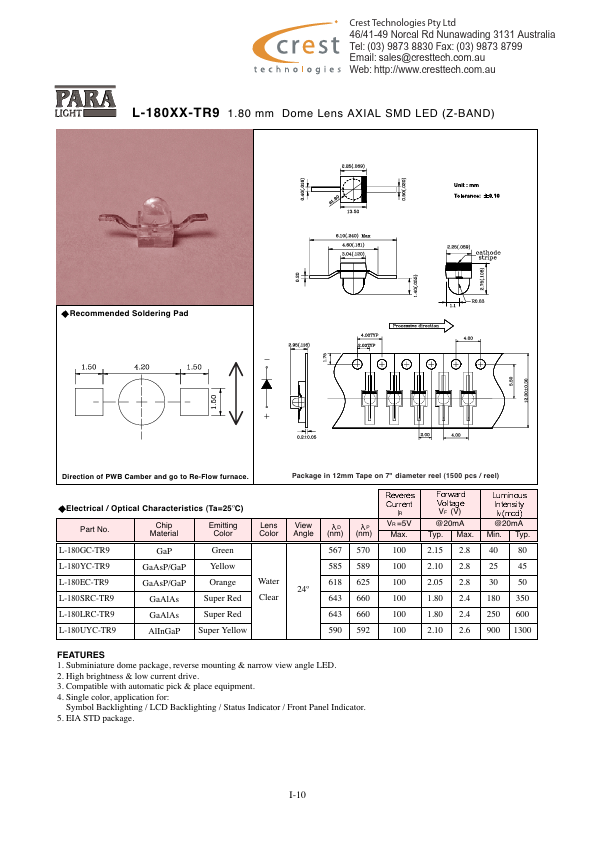

L-180XX-TR9 1.80 mm Dome Lens AXIAL SMD LED (Z-BAND)
Remended Soldering Pad
DDiirreeccttiioonn ooff PPWWBB CCaammbbeerr aanndd ggoo ttoo RRee--FFllooww ffuurrnnaaccee.
Package in 12mm Tape on 7" diameter reel (1500 pcs / reel)
Electrical / Optical Characteristics (Ta=25ºC)
Part No.
Chip Material
Emitting Color
Lens View
Color Angle (nm) (nm)
L-180GC-TR9 L-180YC-TR9 L-180EC-TR9 L-180SRC-TR9 L-180LRC-TR9 L-180UYC-TR9
Ga P
Green
567 570
Ga As P/Ga P
Yellow
585 589
Ga As P/Ga P
Orange
Water
618 625
24º
Ga Al As
Super Red Clear
643 660
Ga Al As
Super Red
643 660
Al In Ga P Super...
