L-C150JGCT-U1 Datasheet SURFACE MOUNT DEVICE LED

Manufacturer: PARA LIGHT

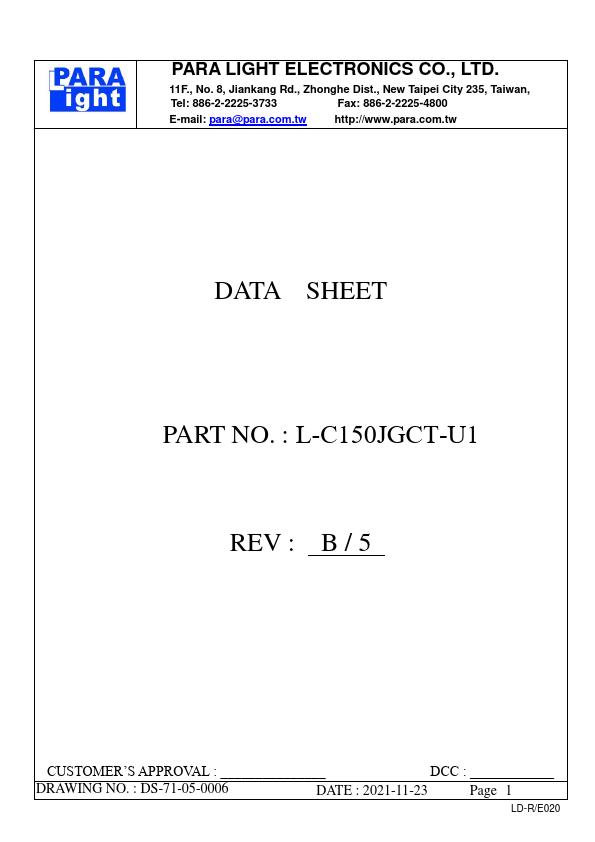

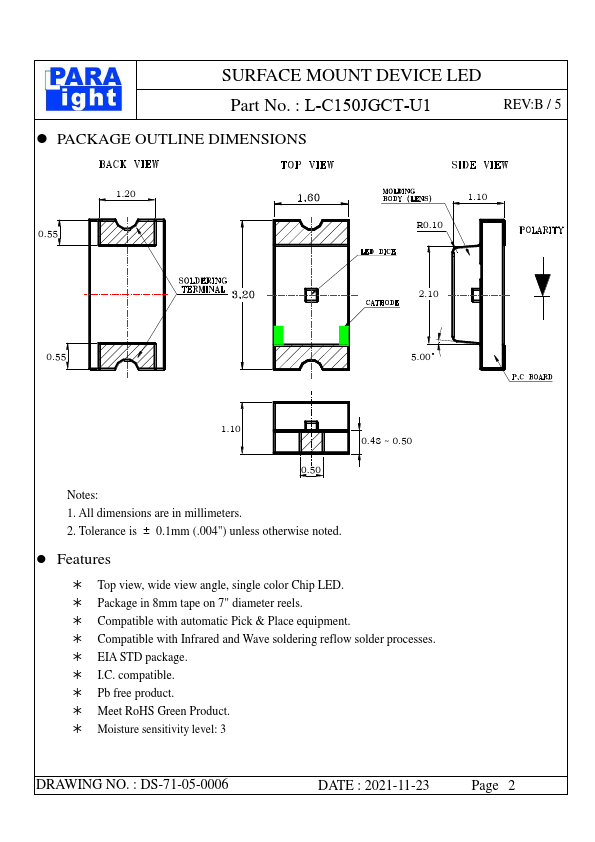

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO. : L-C150JGCT-U1 REV : B / 5 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-71-05-0006 DATE : 2021-11-23 Page 1 LD-R/E020 SURFACE MOUNT DEVICE LED Part No. : L-C150JGCT-U1  PACKAGE OUTLINE DIMENSIONS REV:B / 5 0.55 1.20 R0.10 1.10 2.10 0.55 5.00° 1.10 0.48 ~ 0.50 0.50 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.

📥 Download Datasheet

Datasheet Details

Part number L-C150JGCT-U1
Manufacturer PARA LIGHT
File Size 1.14 MB
Description SURFACE MOUNT DEVICE LED
Download L-C150JGCT-U1 Download (PDF)

Key Features

  • Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I. C. compatible.  Pb free product.  Meet RoHS Green Product.  Moisture sensitivity level: 3.
