Datasheet Summary

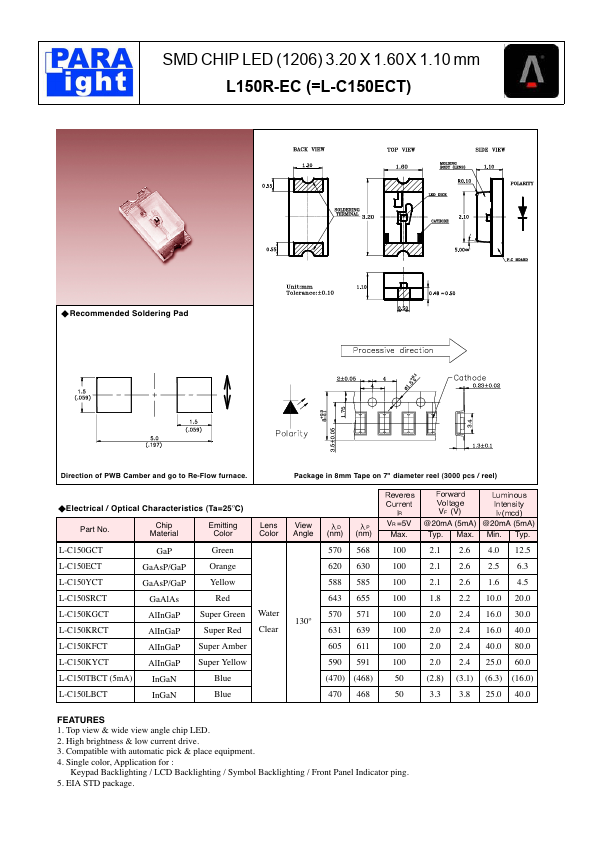

SMD CHIP LED (1206) 3.20 X 1.60X 1.10 mm L150R-EC (=L-C150ECT)
Remended Soldering Pad
Direction of PWB Camber and go to Re-Flow furnace.
Package in 8mm Tape on 7" diameter reel (3000 pcs / reel)
Electrical / Optical Characteristics (Ta=25ºC)
Part No.
Chip Material
Emitting Color
Lens Color
L-C150GCT
GaP
Green
L-C150ECT
GaAsP/GaP
Orange
L-C150YCT
GaAsP/GaP
Yellow
L-C150SRCT L-C150KGCT L-C150KRCT
GaAlAs AlInGaP AlInGaP
Red Super Green Super Red
Water Clear
AlInGaP Super Amber
L-C150KYCT
AlInGaP Super Yellow
L-C150TBCT (5mA) InGaN
Blue
L-C150LBCT
InGaN
Blue...
