L-C150KGCT Datasheet SURFACE MOUNT DEVICE LED

Manufacturer: PARA LIGHT

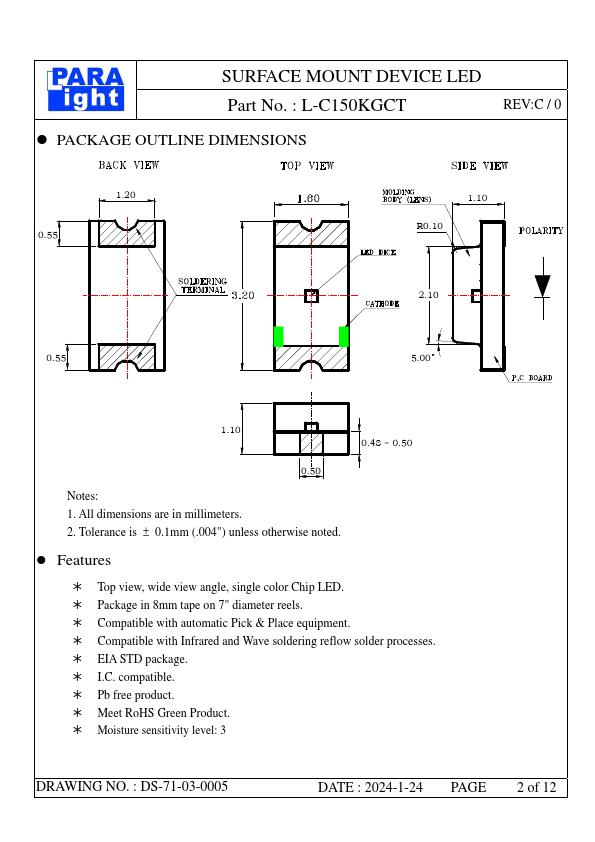

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO. : L-C150KGCT REV : C / 0 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-71-03-0005 DATE : 2024-1-24 PAGE 1 of 12 LD-R/E020 SURFACE MOUNT DEVICE LED Part No. : L-C150KGCT  PACKAGE OUTLINE DIMENSIONS REV:C / 0 0.55 1.20 R0.10 1.10 2.10 0.55 5.00° 1.10 0.48 ~ 0.50 0.50 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.

📥 Download Datasheet

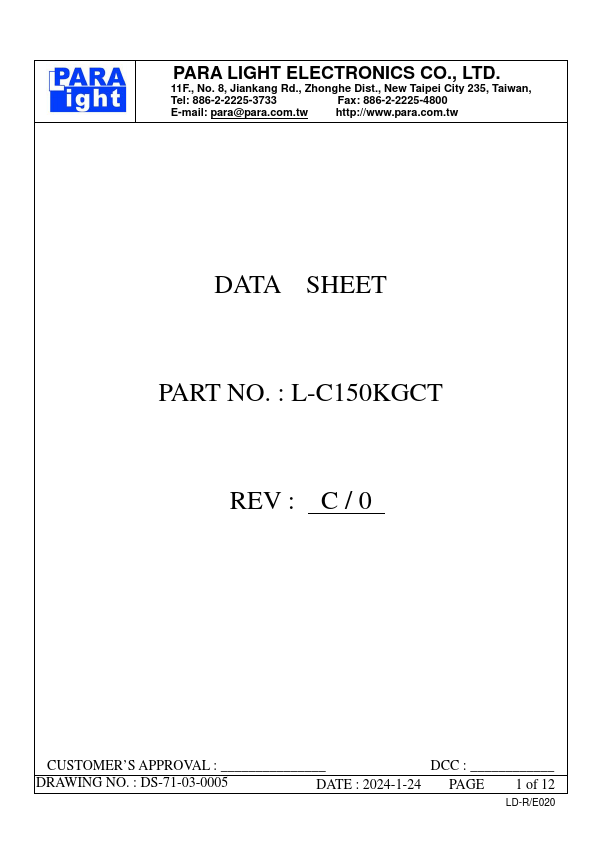

L-C150KGCT surface mount device led by PARA LIGHT - Datasheet Preview

Datasheet Details

Part number	L-C150KGCT
Manufacturer	PARA LIGHT
File Size	332.07 KB
Description	SURFACE MOUNT DEVICE LED
Download	L-C150KGCT Download (PDF)

Key Features

Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I. C. compatible.  Pb free product.  Meet RoHS Green Product.  Moisture sensitivity level: 3.
