L-C150SRCT Datasheet SURFACE MOUNT DEVICE LED

Manufacturer: PARA LIGHT

Overview: PARA LIGHT ELECTRONICS CO., LTD. 4F, No.1, Lane 93, Chien Yi Road, Chung Ho City, Taipei, Taiwan, R.O.C. Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO.: L-C150SRCT REV: B / 1 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-71-03-0004 DATE : 2007-09-14 PAGE 1 of 14 PARA-FOR-065 SURFACE MOUNT DEVICE LED Part No. : L-C150SRCT REV:B / 1 PACKAGE OUTLINE DIMENSIONS 0.55 1.20 0.55 R0.10 1.10 2.10 5.00° 1.10 0.48 ~ 0.50 0.50 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.

📥 Download Datasheet

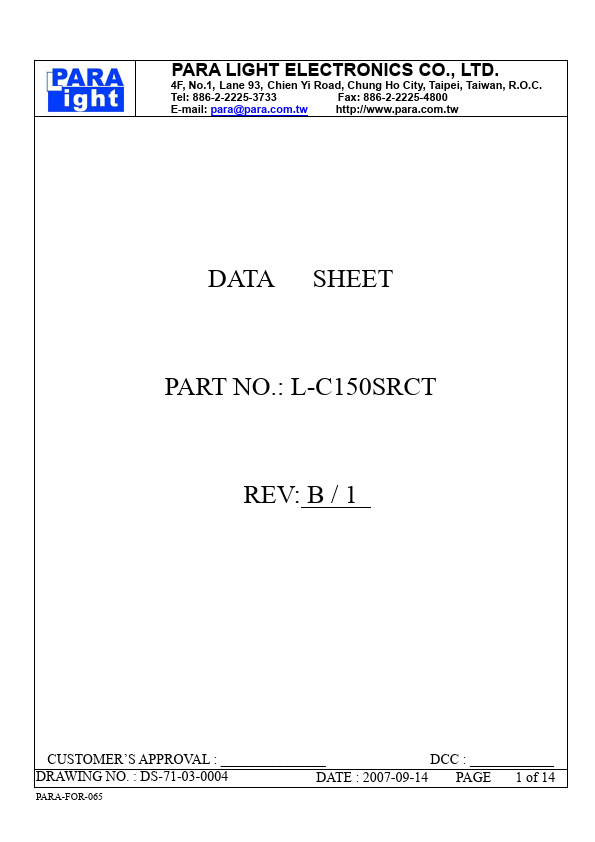

L-C150SRCT surface mount device led by PARA LIGHT - Datasheet Preview

Datasheet Details

Part number	L-C150SRCT
Manufacturer	PARA LIGHT
File Size	482.85 KB
Description	SURFACE MOUNT DEVICE LED
Download	L-C150SRCT Download (PDF)

Key Features

Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels. Compatible with automatic Pick & Place equipment. Compatible with Infrared and Wave soldering reflow solder processes. EIA STD package. I. C. compatible. Pb free product. Meet RoHS Green Product.
