This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | L-C170KGCT |
|---|---|
| Datasheet | L-C170KGCT L-C170GCT Datasheet (PDF) |
| File Size | 299.67 KB |
| Manufacturer | PARA LIGHT |
| Description | SMD CHIP LED |
|
|
|

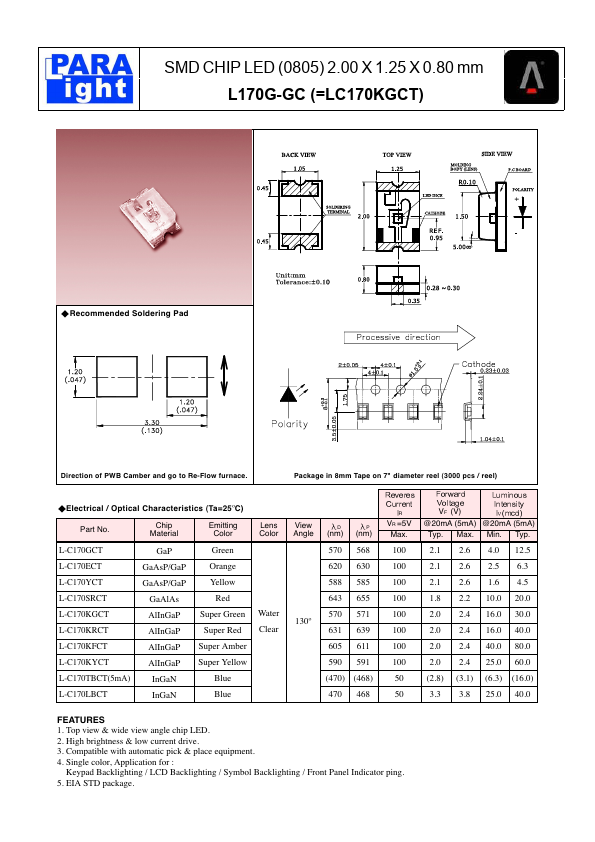

SMD CHIP LED (0805) 2.00 X 1.25 X 0.80 mm L170G-GC (=LC170KGCT) Remended Soldering Pad Direction of PWB Camber and go to Re-Flow furnace. Package in 8mm Tape on 7" diameter reel (3000 pcs / reel) Electrical / Optical Characteristics (Ta=25ºC) Part No.
| Part Number | Description |
|---|---|
| L-C170KFCT | SMD CHIP LED |
| L-C170KRCT | SMD CHIP LED |
| L-C170KYCT | SMD CHIP LED |
| L-C170ECT | SMD CHIP LED |
| L-C170GCT | SMD CHIP LED |
| L-C170GCT-U1 | SURFACE MOUNT DEVICE LED |
| L-C170JFCT-U1 | SURFACE MOUNT DEVICE LED |
| L-C170LBCT | SMD CHIP LED |
| L-C170LGCT | SURFACE MOUNT DEVICE LED |
| L-C170LGCT-U1 | SURFACE MOUNT DEVICE LED |
