Datasheet Details
| Part number | L-C170GCT |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 299.67 KB |
| Description | SMD CHIP LED |
| Download | L-C170GCT Download (PDF) |
|
|
|

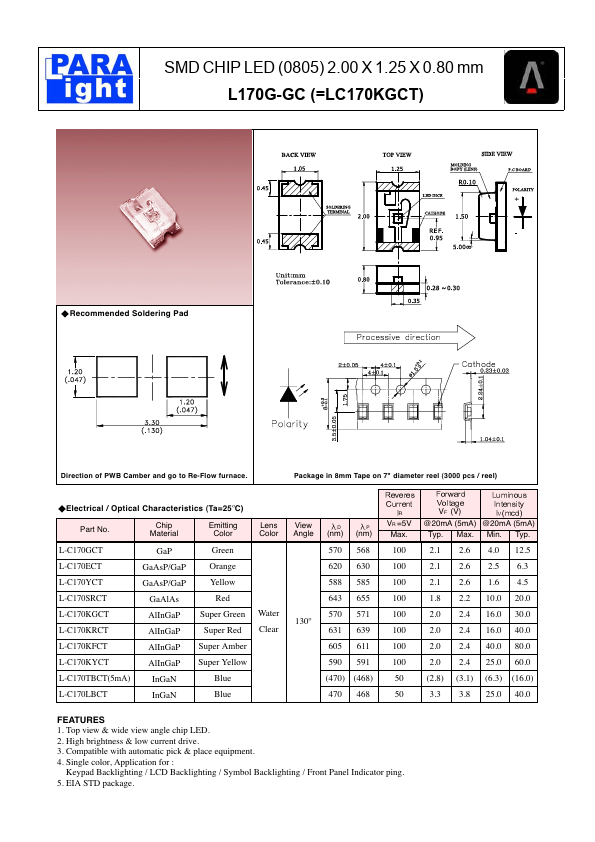

Overview: SMD CHIP LED (0805) 2.00 X 1.25 X 0.80 mm L170G-GC (=LC170KGCT) Recommended Soldering Pad Direction of PWB Camber and go to Re-Flow furnace. Package in 8mm Tape on 7" diameter reel (3000 pcs / reel) Electrical / Optical Characteristics (Ta=25ºC) Part No. Chip Material Emitting Color Lens Color L-C170GCT GaP Green L-C170ECT GaAsP/GaP Orange L-C170YCT GaAsP/GaP Yellow L-C170SRCT L-C170KGCT L-C170KRCT GaAlAs AlInGaP AlInGaP Red Super Green Super Red Water Clear L-C170KFCT AlInGaP Super Amber L-C170KYCT AlInGaP Super Yellow L-C170TBCT(5mA) InGaN Blue L-C170LBCT InGaN Blue View D P Angle (nm) (nm) 570 568 620 630 588 585 643 655 570 571 130º 631 639 605 611 590 591 (470) (468) 470 468 R VR =5V Max. 100 100 100 100 100 100 100 100 50 50 VF (V) @20mA (5mA) @20mA (5mA) Typ. Max. Min. Typ. 2.1 2.6 4.0 12.5 2.1 2.6 2.5 6.3 2.1 2.6 1.6 4.5 1.8 2.2 10.0 20.0 2.0 2.4 16.0 30.0 2.0 2.4 16.0 40.0 2.0 2.4 40.0 80.0 2.0 2.4 25.0 60.0 (2.8) (3.1) (6.3) (16.0) 3.3 3.8 25.0 40.
| Part number | L-C170GCT |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 299.67 KB |
| Description | SMD CHIP LED |
| Download | L-C170GCT Download (PDF) |
|
|
|
