L-C170LGCT Datasheet SURFACE MOUNT DEVICE LED

Manufacturer: PARA LIGHT

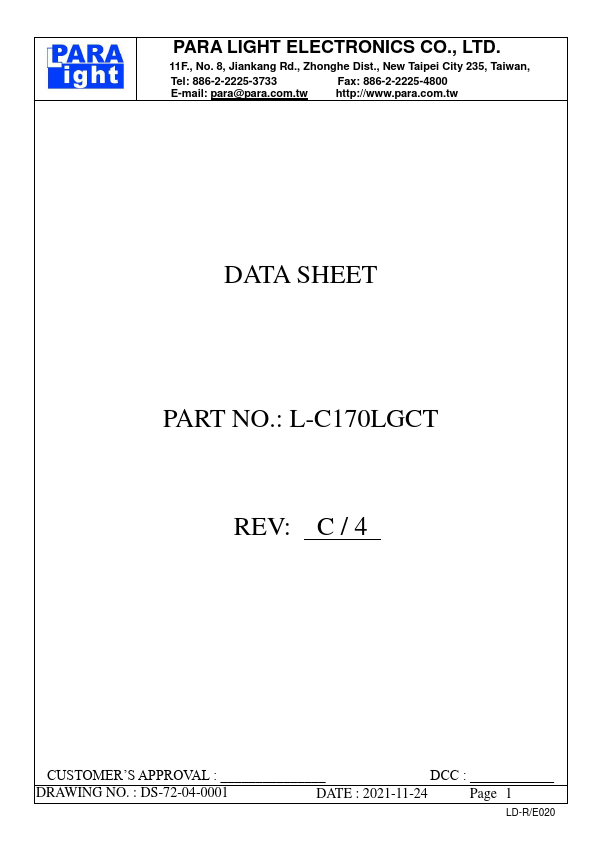

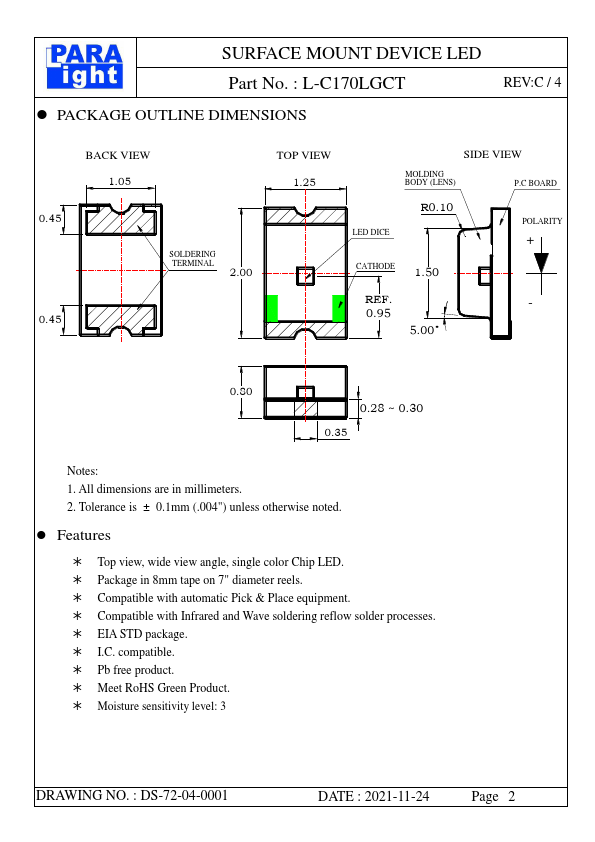

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 http://www.para.com.tw DATA SHEET PART NO.: L-C170LGCT REV: C / 4 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-72-04-0001 DATE : 2021-11-24 Page 1 LD-R/E020 SURFACE MOUNT DEVICE LED Part No. : L-C170LGCT  PACKAGE OUTLINE DIMENSIONS REV:C / 4 0.45 0.45 BACK VIEW 1.05 SOLDERING TERMINAL 2.00 TOP VIEW 1.25 SIDE VIEW MOLDING BODY (LENS) P.C BOARD LED DICE R0.10 POLARITY + CATHODE 1.50 REF. - 0.95 5.00° 0.80 0.28 ~ 0.30 0.35 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.

📥 Download Datasheet

Datasheet Details

Part number L-C170LGCT
Manufacturer PARA LIGHT
File Size 741.37 KB
Description SURFACE MOUNT DEVICE LED
Download L-C170LGCT Download (PDF)

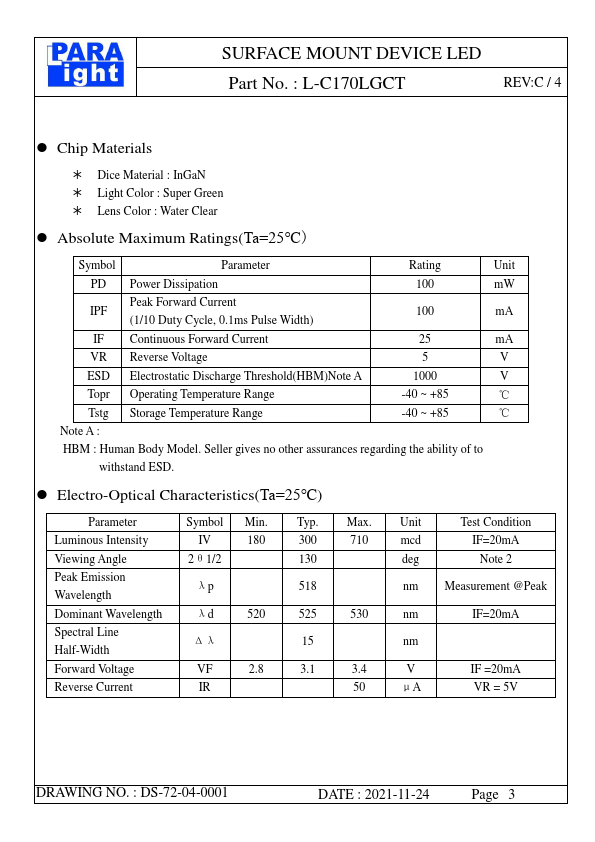

Key Features

  • Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I. C. compatible.  Pb free product.  Meet RoHS Green Product.  Moisture sensitivity level: 3.
