L-C170GCT-U1 - SURFACE MOUNT DEVICE LED

Features

  • Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels. Compatible with automatic Pick & Place equipment. Compatible with Infrared and Wave soldering reflow solder processes. EIA STD package. I. C. compatible. Pb free product.

📥 Download Datasheet

Datasheet Details

Part number L-C170GCT-U1
Manufacturer PARA LIGHT
File Size 234.27 KB
Description SURFACE MOUNT DEVICE LED
Datasheet download datasheet L-C170GCT-U1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L-C150KGCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C150KRCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C191IR1CT SURFACE MOUNT DEVICE LED Para Light Electronics
L-C295KGKYCT SMD LED PARA LIGHT ELECTRONICS

Other Datasheets by PARA LIGHT

Part Number Description
L-C170GCT SMD CHIP LED
L-C170ECT SMD CHIP LED
L-C170JFCT-U1 SURFACE MOUNT DEVICE LED
L-C170KFCT SMD CHIP LED
L-C170KGCT SMD CHIP LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

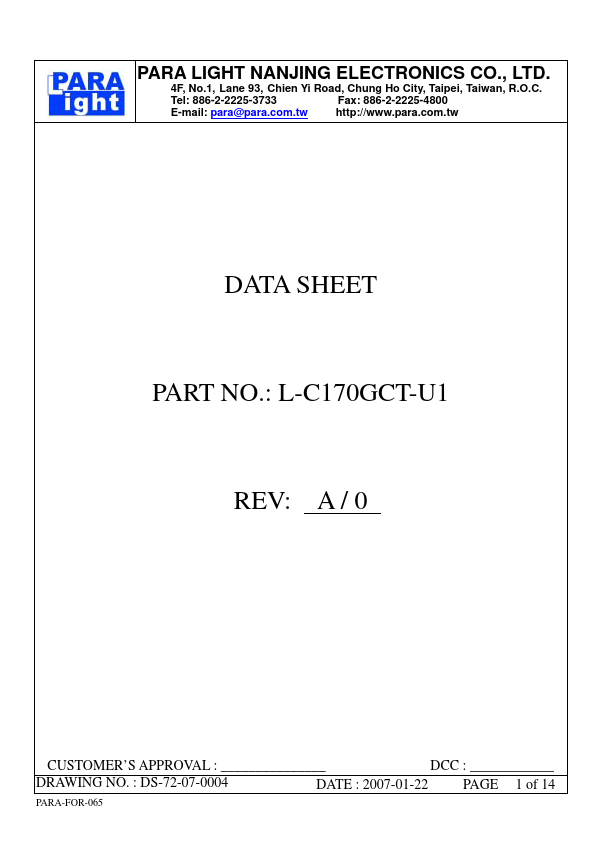

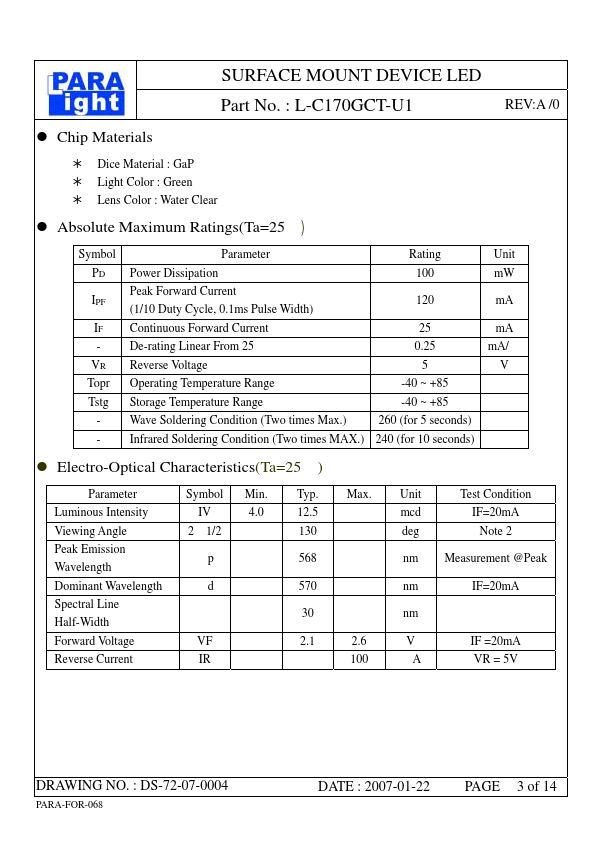

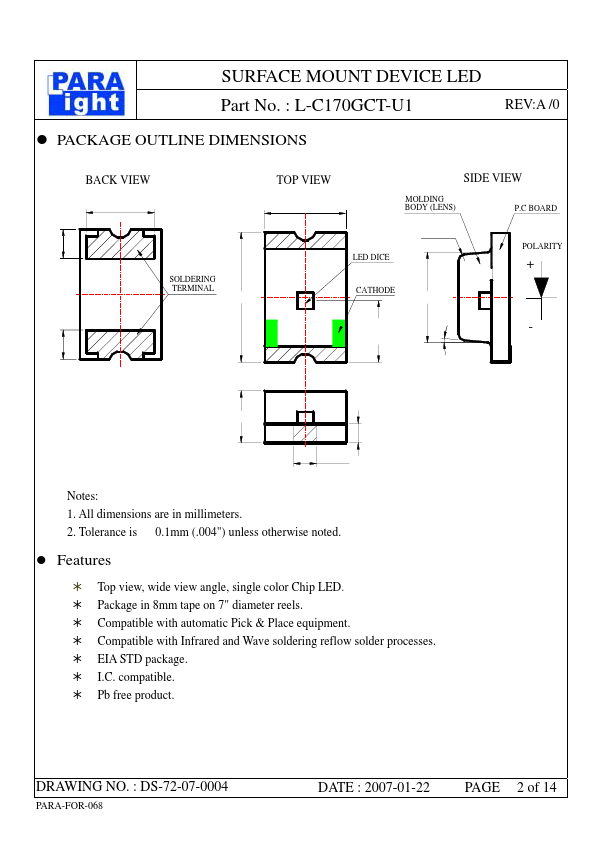

PARA LIGHT NANJING ELECTRONICS CO., LTD. 4F, No.1, Lane 93, Chien Yi Road, Chung Ho City, Taipei, Taiwan, R.O.C. Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO.: L-C170GCT-U1 REV: A / 0 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-72-07-0004 DATE : 2007-01-22 PAGE 1 of 14 PARA-FOR-065 SURFACE MOUNT DEVICE LED Part No. : L-C170GCT-U1 REV:A /0 PACKAGE OUTLINE DIMENSIONS BACK VIEW TOP VIEW SIDE VIEW MOLDING BODY (LENS) P.C BOARD SOLDERING TERMINAL LED DICE CATHODE POLARITY + - Notes: 1. All dimensions are in millimeters. 2. Tolerance is 0.1mm (.004") unless otherwise noted. Features Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels.
