L-C170LBCT Datasheet SMD CHIP LED

Manufacturer: PARA LIGHT

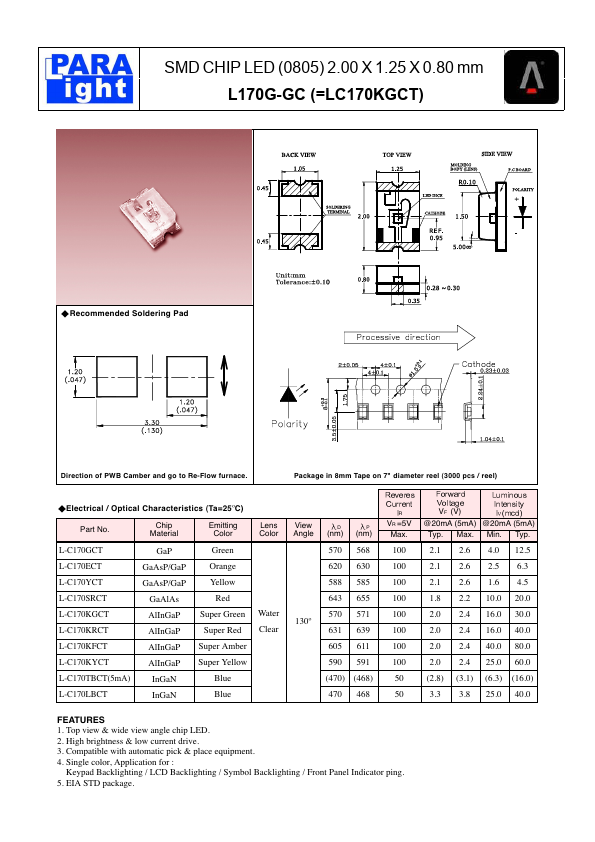

Overview: SMD CHIP LED (0805) 2.00 X 1.25 X 0.80 mm L170G-GC (=LC170KGCT) Recommended Soldering Pad Direction of PWB Camber and go to Re-Flow furnace. Package in 8mm Tape on 7" diameter reel (3000 pcs / reel) Electrical / Optical Characteristics (Ta=25ºC) Part No. Chip Material Emitting Color Lens Color L-C170GCT GaP Green L-C170ECT GaAsP/GaP Orange L-C170YCT GaAsP/GaP Yellow L-C170SRCT L-C170KGCT L-C170KRCT GaAlAs AlInGaP AlInGaP Red Super Green Super Red Water Clear L-C170KFCT AlInGaP Super Amber L-C170KYCT AlInGaP Super Yellow L-C170TBCT(5mA) InGaN Blue L-C170LBCT InGaN Blue View D P Angle (nm) (nm) 570 568 620 630 588 585 643 655 570 571 130º 631 639 605 611 590 591 (470) (468) 470 468 R VR =5V Max. 100 100 100 100 100 100 100 100 50 50 VF (V) @20mA (5mA) @20mA (5mA) Typ. Max. Min. Typ. 2.1 2.6 4.0 12.5 2.1 2.6 2.5 6.3 2.1 2.6 1.6 4.5 1.8 2.2 10.0 20.0 2.0 2.4 16.0 30.0 2.0 2.4 16.0 40.0 2.0 2.4 40.0 80.0 2.0 2.4 25.0 60.0 (2.8) (3.1) (6.3) (16.0) 3.3 3.8 25.0 40.

Download the L-C170LBCT datasheet PDF. This datasheet also includes the L-C170GCT variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Datasheet Details

Part number L-C170LBCT
Manufacturer PARA LIGHT
File Size 299.67 KB
Description SMD CHIP LED
Download L-C170LBCT Download (PDF)

Key Features

  • 1. Top view & wide view angle chip LED. 2. High brightness & low current drive. 3. Compatible with automatic pick & place equipment. 4. Single color,.
