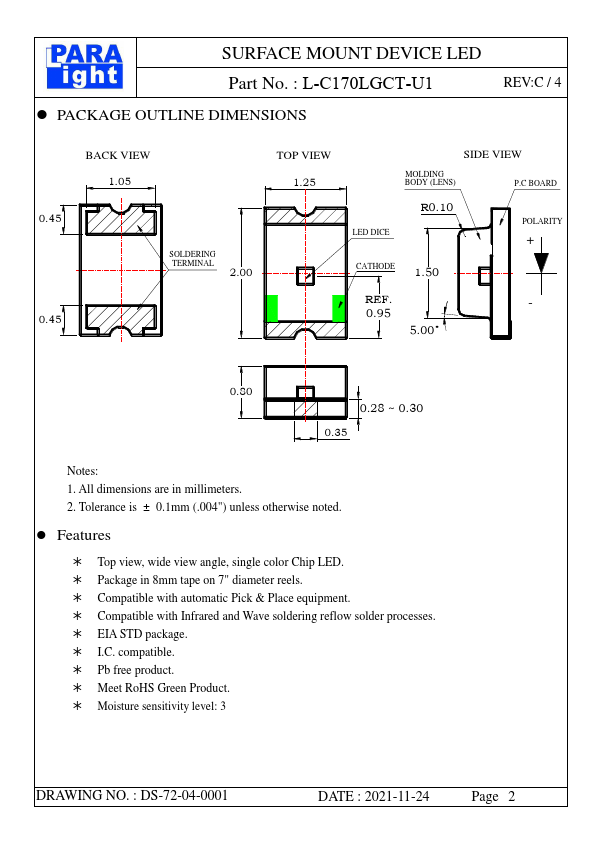

Features  Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  patible with automatic Pick & Place equipment.  patible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I.C. patible.  Pb free product.  Meet Ro HS Green Product.  Moisture sensitivity level: 3 DRAWING NO. : DS-72-04-0001 DATE : 2021-11-24 Page 2 SURFACE MOUNT DEVICE LED Part No. : L-C170LGCT-U1 REV:C / 4 - Chip Materials  Dice Material : In Ga N  Light Color : Super Green  Lens Color : Water Clear - Absolute Maximum Ratings(Ta=25℃) Symbol Parameter Rating Unit PD Power Dissipation 100 m W Peak Forward Current IPF (1/10 Duty Cycle, 0.1ms Pulse Width) 100 m A IF Continuous Forward Current 25 m A VR Reverse Voltage ESD Electrostatic Discharge Threshold(HBM)Note A Topr Operating Temperature Range -40 ~ +85 ℃ Tstg Storage Temperature Range -40 ~ +85 ℃ Note A : HBM : Human Body Model. Seller gives no other assurances regarding the ability of to withstand ESD. - Electro-Optical Characteristics(Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Viewing...
