L-C191JYCT-U1
L-C191JYCT-U1 is SURFACE MOUNT DEVICE LED manufactured by PARA LIGHT.
PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para..tw http://.para..tw
DATA SHEET PART NO. : L-C191JYCT-U1
REV : B / 3
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-74-07-0019
DATE : 2021-11-11 Page
LD-R/E020
SURFACE MOUNT DEVICE LED
Part No. : L-C191JYCT-U1
REV:B / 3

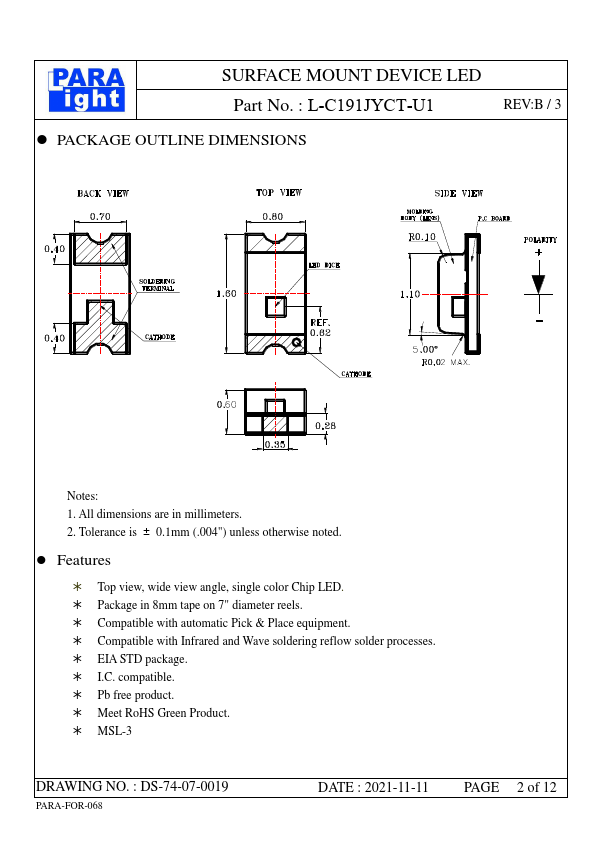

- PACKAGE OUTLINE DIMENSIONS
Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.
- Features
Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels. patible with...
