L-C191LGCT-U1 - SURFACE MOUNT DEVICE LED

Datasheet Summary

Features

  • Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I. C. compatible.  Pb free product.  Meet RoHS Green Product.  MSL-3.

📥 Download Datasheet

Datasheet preview – L-C191LGCT-U1

Datasheet Details

Part number L-C191LGCT-U1
Manufacturer PARA LIGHT
File Size 1.18 MB
Description SURFACE MOUNT DEVICE LED
Datasheet download datasheet L-C191LGCT-U1 Datasheet
Additional preview pages of the L-C191LGCT-U1 datasheet.

📁 Similar Datasheet

  • L-C191IR1CT - SURFACE MOUNT DEVICE LED (Para Light Electronics)
  • L-C150KGCT - SURFACE MOUNT DEVICE LED (HB Electronic Components)
  • L-C150KRCT - SURFACE MOUNT DEVICE LED (HB Electronic Components)
  • L-C295KGKYCT - SMD LED (PARA LIGHT ELECTRONICS)
Other Datasheets by PARA LIGHT

Full PDF Text Transcription

Click to expand full text

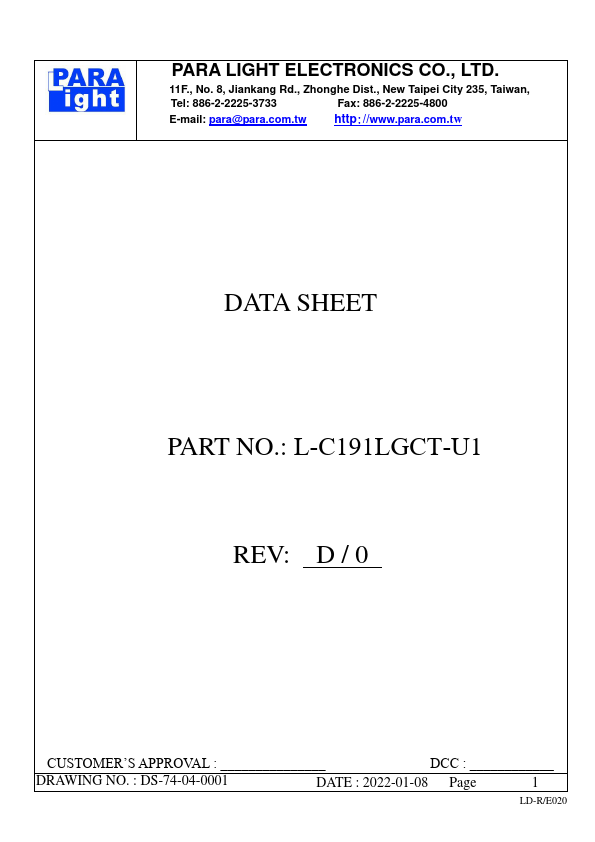

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO.: L-C191LGCT-U1 REV: D / 0 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-74-04-0001 DATE : 2022-01-08 Page 1 LD-R/E020 SURFACE MOUNT DEVICE LED Part No. : L-C191LGCT-U1 REV:D / 0  PACKAGE OUTLINE DIMENSIONS Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.  Features  Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Infrared and Wave soldering reflow solder processes.
