PW028N06ESL - 60V 100A MOS4 N-MOSFET

Key Features

Beneficts.
Uses PingWei advanced PerfectMOS4 technology.
High robustness and reliability.
Extremely low on-resistance RDS(on).
Excellent QgxRDS(on) product(FOM).
Excellent Low Ciss.
Increases maximum current capability.
Low power loss, high power density.
Easy paralleing.
Qualified according to JEDEC criteria.

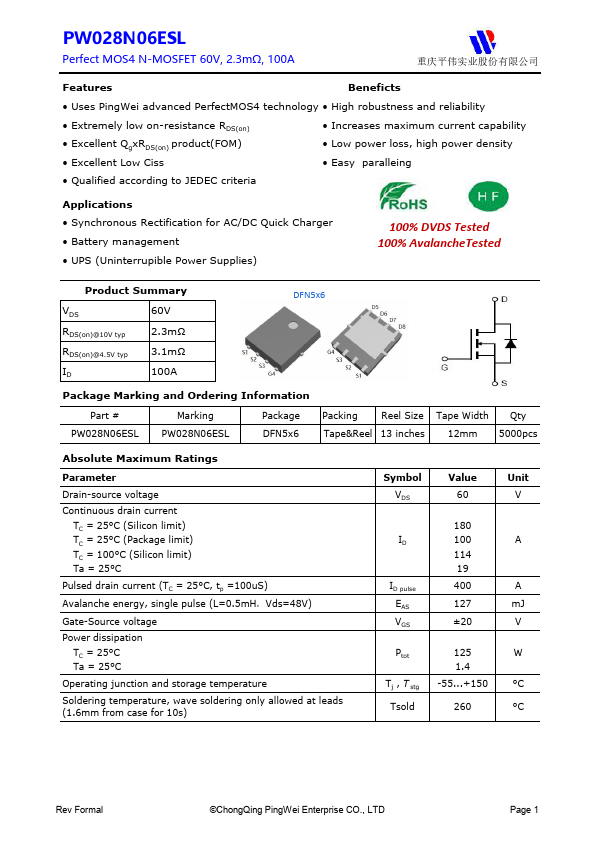

PW028N06ESL 60v 100a mos4 n-mosfet by PINGWEI - Datasheet Preview

Datasheet Details

Part number	PW028N06ESL
Manufacturer	PINGWEI
File Size	1.31 MB
Description	60V 100A MOS4 N-MOSFET
Datasheet	PW028N06ESL Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
PW018N08TS	80V N-CHANNEL MOSFET	perfectway
PW035XS4	LCD	Prime View
PW036XS3	TFT-LCD module	AZ Displays
PW045XS1	LCD	PRIME_VIEW
PW056XS2	LCD	Prime View

Other Datasheets by PINGWEI

Part Number	Description
PW016N10TS	100V 300A N-MOSFET
PW035N06CSL	Perfect MOS4 N-MOSFET
PW038N10ESL	MOS N-MOSFET
PW080N10GS	100V 85A Perfect MOS5 N-MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

PW028N06ESL Perfect MOS4 N-MOSFET 60V, 2.3mΩ, 100A Features Beneficts • Uses PingWei advanced PerfectMOS4 technology • High robustness and reliability • Extremely low on-resistance RDS(on) • Excellent QgxRDS(on) product(FOM) • Excellent Low Ciss • Increases maximum current capability • Low power loss, high power density • Easy paralleing • Qualified according to JEDEC criteria Applications • Synchronous Rectification for AC/DC Quick Charger • Battery management • UPS (Uninterrupible Power Supplies) 100% DVDS Tested 100% AvalancheTested Product Summary VDS RDS(on)@10V typ RDS(on)@4.5V typ ID 60V 2.3mΩ 3.
