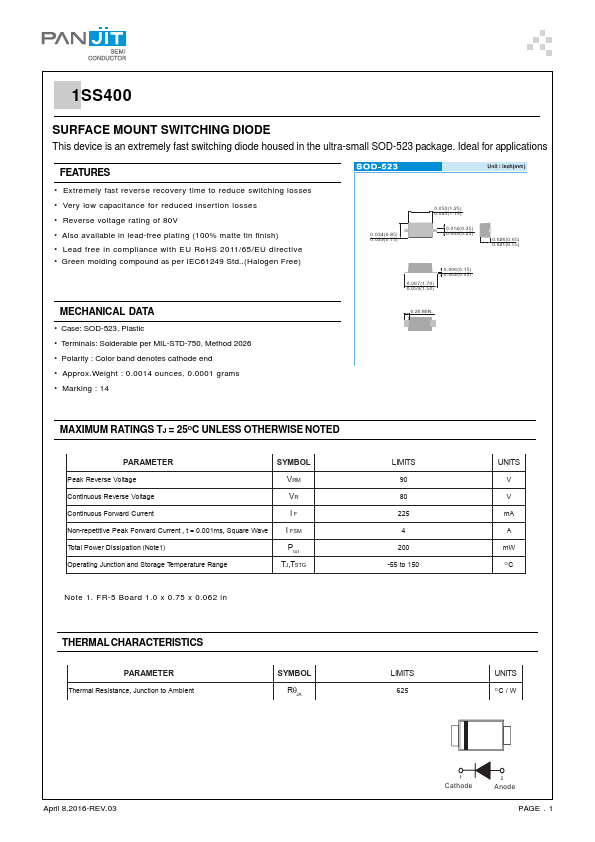

Datasheet Summary
SURFACE MOUNT SWITCHING DIODE
This device is an extremely fast switching diode housed in the ultra-small SOD-523 package. Ideal for applications
Features
- Extremely fast reverse recovery time to reduce switching losses
- Very low capacitance for reduced insertion losses
- Reverse voltage rating of 80V
- Also available in lead-free plating (100% matte tin finish)
- Lead free in pliance with EU RoHS 2011/65/EU directive
- Green molding pound as per IEC61249 Std..(Halogen Free)
MECHANICAL DATA
- Case: SOD-523, Plastic
- Terminals: Solderable per MIL-STD-750, Method 2026
- Polarity : Color band denotes cathode end
- Approx.Weight : 0.0014 ounces, 0.0001 grams
- Marking :...
