Datasheet Summary
SD103AWS~SD103CWS
SURFACE MOUNT SCHOTTKY BARRIER
VOLTAGE 20 to 40 Volt
CURRENT 0.35 Ampere
Features
- Low turn-on voltage
- Fast switching
- PN Junction Guard Ring for Transient and ESD Protection.
- Lead free in pliance with EU RoHS 2.0
- Green molding pound as per IEC 61249 standard
MECHANICAL DATA
- Case: SOD-323, Plastic
- Terminals: Solderable per MIL-STD-750, Method 2026
- Approx. Weight: 0.00014 ounces, 0.0041 grams

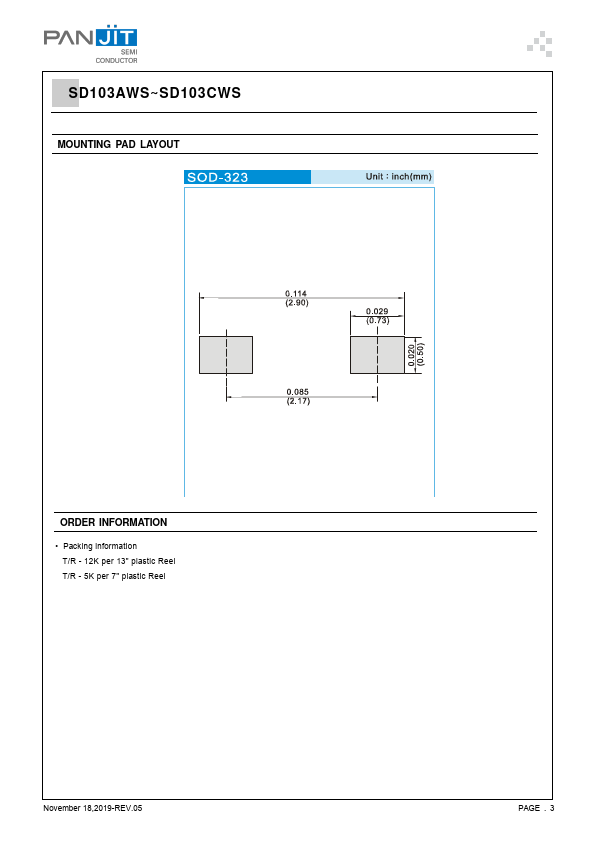

0.054(1.35) 0.045(1.15)
0.078(1.95) 0.068(1.75)
0.014(0.35) 0.009(0.25)
0.036(0.90) 0.027(0.70)
0.107(2.7) 0.090(2.3)
0.006(0.15) 0.002(0.05)
0.012(0.30)MIN.
Cathode
Anode

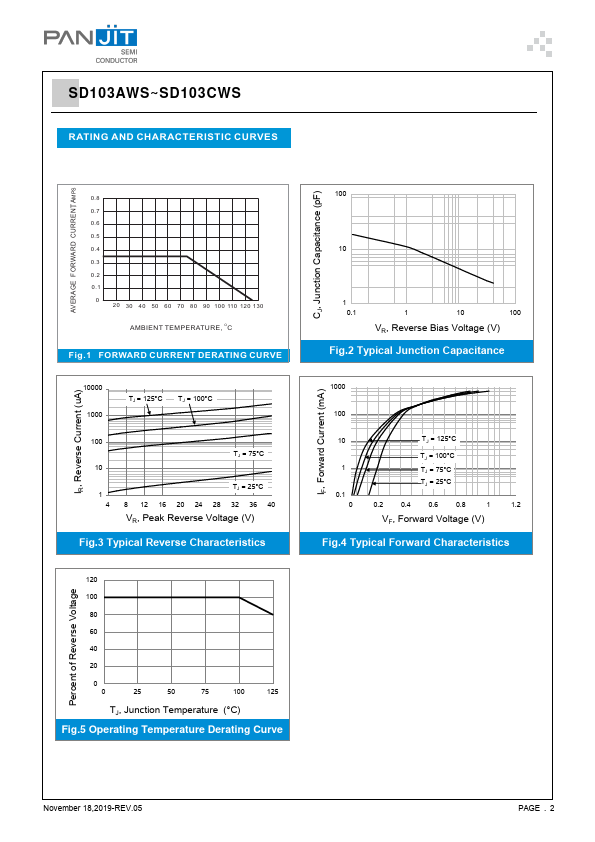

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25OC ambient...
