2SB1574 - Silicon PNP epitaxial planar type Transistor

Datasheet Summary

Features

Panasonic Semiconductor

Datasheet Details

Part number	2SB1574
Manufacturer	Panasonic Semiconductor
File Size	28.18 KB
Description	Silicon PNP epitaxial planar type Transistor
Datasheet	2SB1574 Datasheet
Additional preview pages of the 2SB1574 datasheet.

📁 Similar Datasheet

2SB1574 - Silicon PNP Epitaxial Planar Transistor (Kexin)
2SB1570 - Silicon PNP Transistor (Sanken electric)
2SB1570 - PNP Transistor (INCHANGE)
2SB1571 - PNP SILICON EPITAXIAL TRANSISTOR (NEC)
2SB1571 - Silicon PNP Epitaxial Planar Transistor (Kexin)
2SB1572 - PNP SILICON EPITAXIAL TRANSISTOR (NEC)
2SB1572 - Silicon PNP Epitaxial Planar Transistor (Kexin)
2SB1578 - PNP SILICON EPITAXIAL TRANSISTOR (NEC)
2SB1502 - Silicon PNP Darlington Power Transistor (New Jersey Semi-Conductor)
2SB1502 - PNP Transistor (INCHANGE)

Other Datasheets by Panasonic Semiconductor

2SB1502 - Silicon PNP Transistor
2SB1503 - Silicon PNP Transistor
2SB1537 - Silicon PNP epitaxial planer type Transistor
2SB1539 - Silicon PNP epitaxial planer type Transistor
2SB1548 - Silicon PNP Transistor
2SB1548A - Silicon PNP Transistor
2SB1553 - Silicon PNP epitaxial planar type Transistor
2SB1554 - Silicon PNP epitaxial planar type Transistor

Full PDF Text Transcription

Click to expand full text

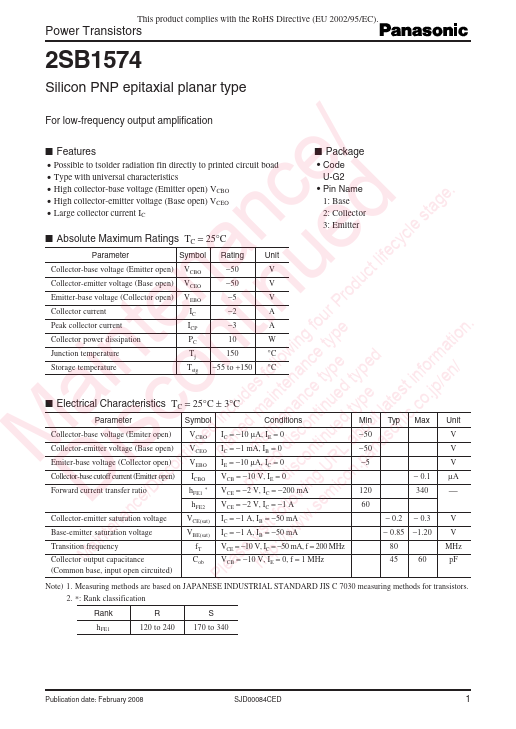

Power Transistors 2SB1574 (Tentative) Silicon PNP epitaxial planar type Unit: mm For low-frequency output amplification 7.3± 0.1 1.8± 0.1 6.5± 0.1 5.3± 0.1 4.35± 0.1 2.3± 0.1 0.5± 0.1 2.5± 0.1 0.8max q q q q Possible to solder radiation fin directly to printed cicuit boad Type with universal characteristics Collector breakdown voltage: VCBO/VCEO = –50V Collector current: IC = –2A 0.93±0.1 1.0± 0.1 0.1± 0.05 0.5± 0.1 0.75± 0.1 2.3± 0.1 4.6± 0.
