Panasonic BAS16
Silicon epitaxial planar type Switching Diode
| Part No. | BAS16 |
|---|---|
| Datasheet | BAS16 Download |
| Manufacturer |  Panasonic |
| Description | Silicon epitaxial planar type Switching Diode |
| Buy | Stock & Price |
FEATURES
● Small reverse current IR● Short reverse recovery time trr
● Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant) Marking Symbol: A6 Packaging Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard)
ABSOLUTE MAXIMUM RATINGS

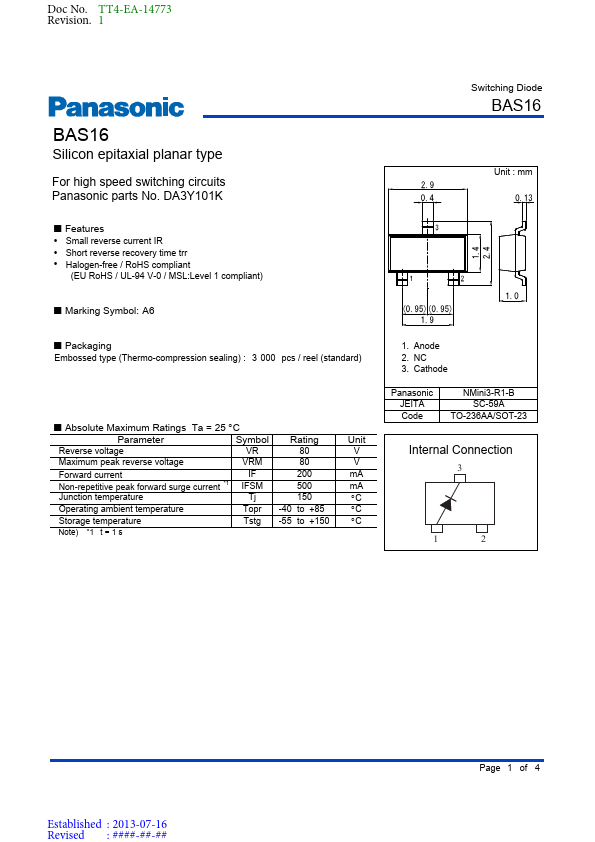

Ta = 25 C Parameter Symbol Rating Unit Reverse voltage VR 80 V Maximum peak reverse voltage VRM 80 V Forward current IF 200 mA Non-repetitive peak forward surge current *1 IFSM 500 mA Junction temperature Tj 150 C Operating ambient temperature Topr -40 to +85 C Storage temperature Tstg -55 to +150 C Note) *1 t = 1 s Product Standards Switching Diode BAS16 2.9 0.4 3 Unit : mm 0.13 1.4 2.4 1 2 1.0 (0.95)(0.95) 1.9 1. Anode 2. NC 3. Cathode Panasonic JEITA Code NMini3-R1-B SC-59A TO-236AA/SOT-23 Internal Connection 3 1 2 Established : 2013-07-16 Revised : ####-##-## Page 1 of 4 Doc No. TT4-EA-14773 Revision. 1 Product Standards Switching Diode BAS16 ELECTRICAL CHARACTERISTICS

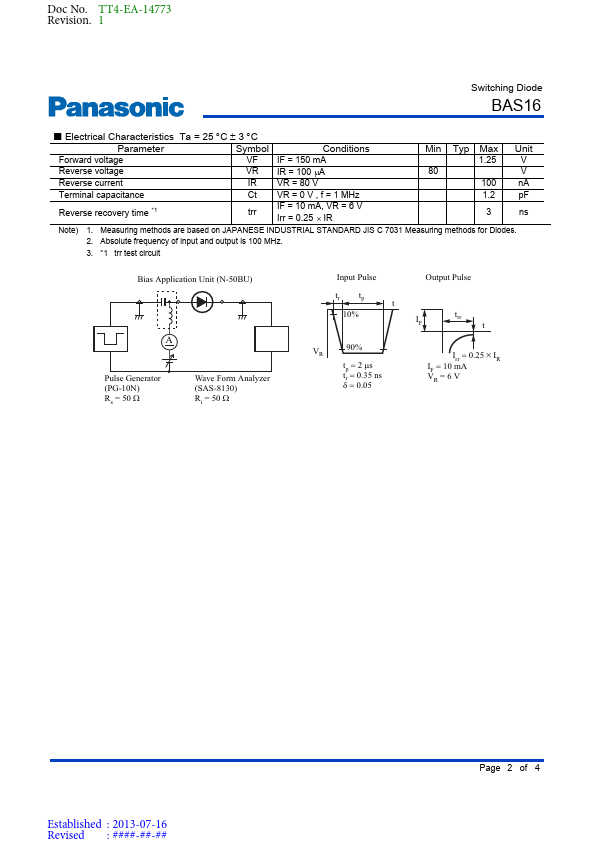

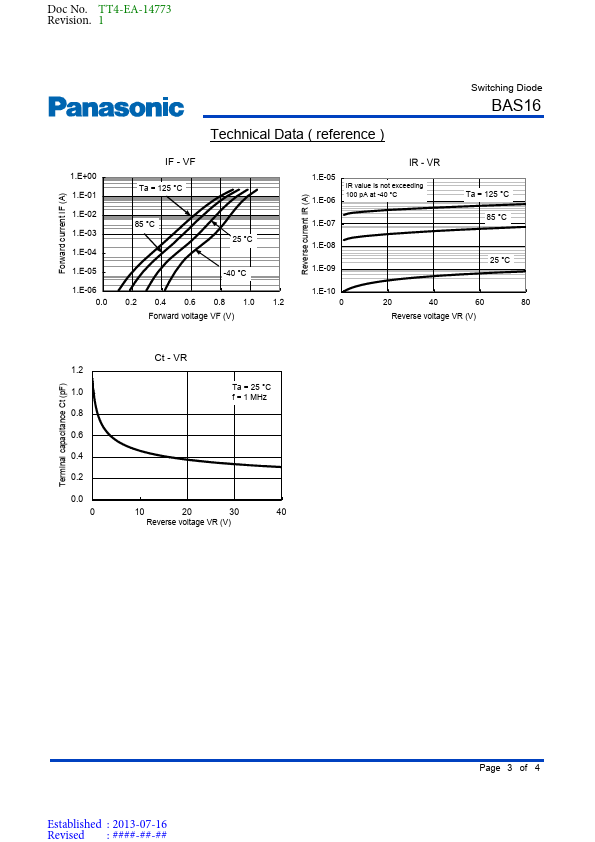

Ta = 25 C 3 C Parameter Sym...
