A-502E

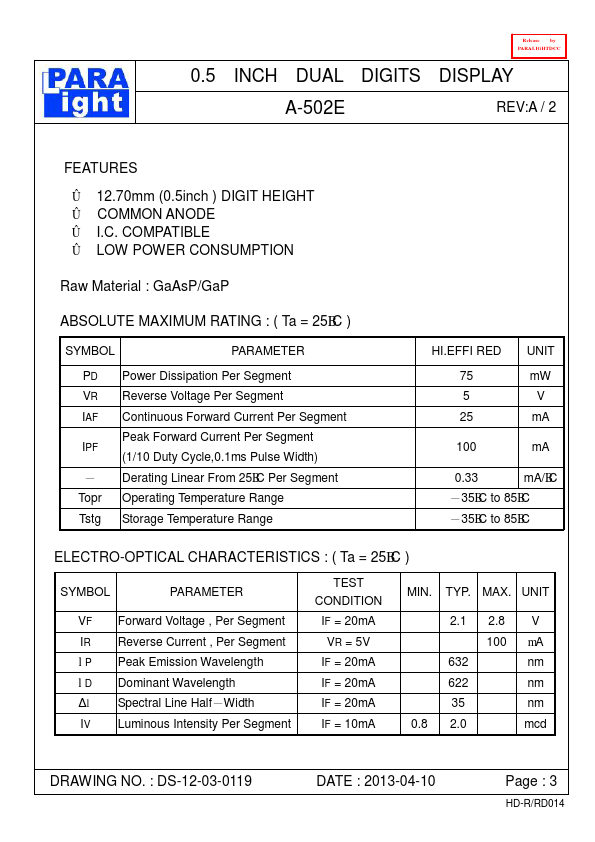

FEATURES
Û 12.70mm (0.5inch ) DIGIT HEIGHT Û MON ANODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION
Raw Material : Ga As P/Ga P
ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
PD Power Dissipation Per Segment VR Reverse Voltage Per Segment IAF Continuous Forward Current Per Segment
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width) － Derating Linear From 25BC Per Segment Topr Operating Temperature Range Tstg Storage Temperature Range
HI.EFFI RED 75 5 25
UNIT m W
V m A
100 m A
0.33 m A/BC
－35BC to 85BC
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
VF Forward Voltage , Per Segment IR Reverse Current , Per Segment l P Peak Emission Wavelength l D Dominant Wavelength Δl Spectral Line Half－Width IV Luminous Intensity Per Segment
TEST CONDITION
IF = 20m A VR = 5V IF = 20m A IF = 20m A IF = 20m A IF = 10m A
MIN. TYP. MAX. UNIT
2.1 2.8 V
100 m A
632 nm
622 nm
35 nm
0.8 2.0 mcd
DRAWING NO. : DS-12-03-0119
DATE :...
