PE4251 - SPDT RF Switch

Product Overview

Peregrine Semiconductor

Datasheet Details

Part number	PE4251
Manufacturer	Peregrine Semiconductor
File Size	1.12 MB
Description	SPDT RF Switch
Datasheet	PE4251 Datasheet
Additional preview pages of the PE4251 datasheet.

Product details

Description

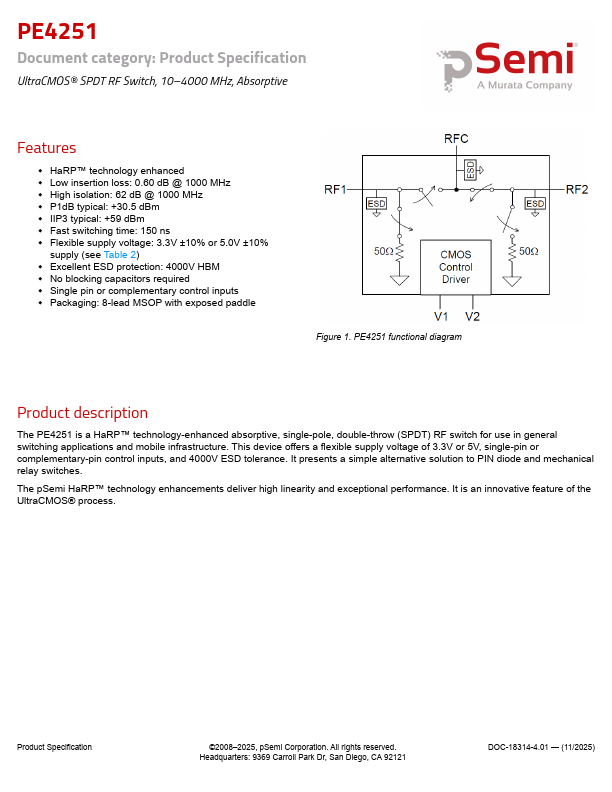

The PE4251 is a HaRP™ technology-enhanced absorptive single pole double throw (SPDT) RF switch for use in general switching applications and mobile infrastructure.

This device offers a flexible supply voltage of 3.3/5V, single-pin or complementary pin control inputs and 4 kV ESD tolerance.

Features

HaRP™ technology enhanced.
Low insertion loss: 0.60 dB @ 1000 MHz.
High isolation: 62 dB @ 1000 MHz.
P1dB typical: +30.5 dBm.
IIP3 typical: +59 dBm.
Fast switching time: 150 ns.

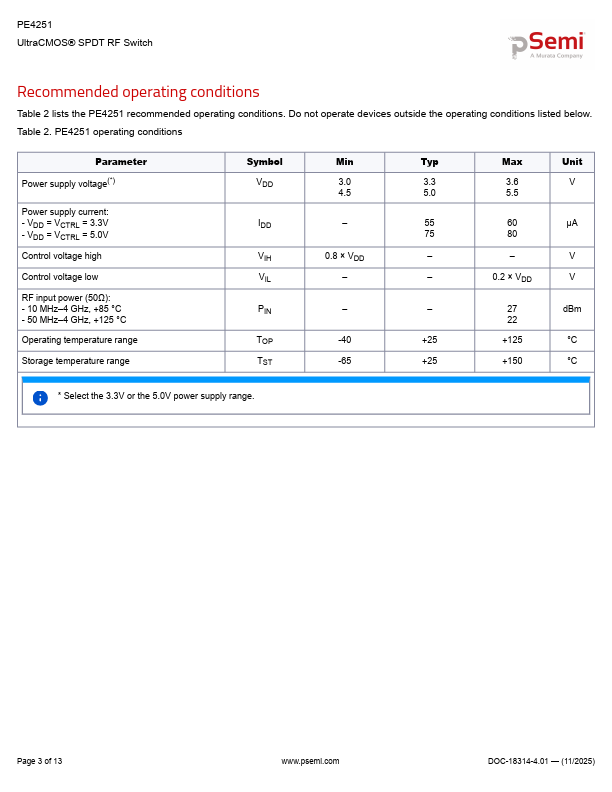

Flexible supply voltage: 3.3V ±10% or 5.0V ±10% supply (see Table 3).

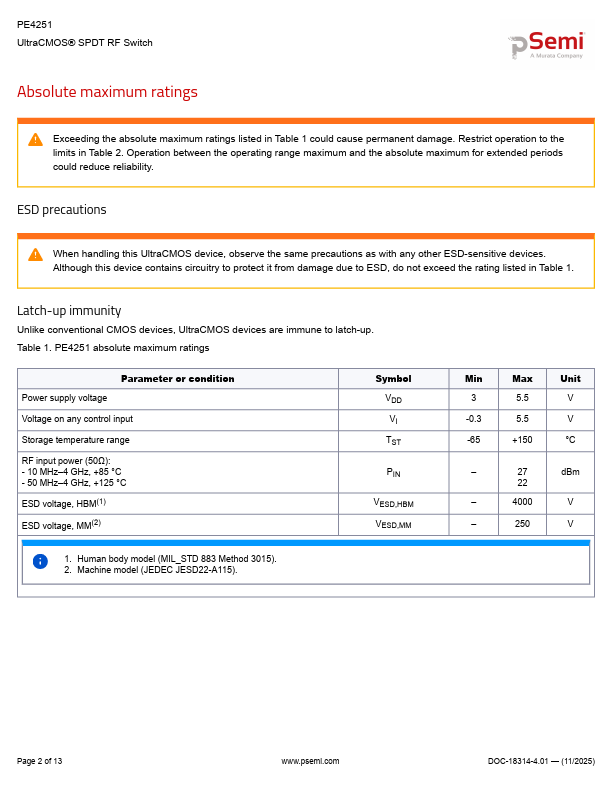

Excellent ESD protection: 4000V HBM.
No blocking capacitors required.
Single pin or complementary control inputs ESD RF1 ESD RF2 ESD Figure 2. Package Type 8-lead MSOP with exposed paddle 50 CMO.
