PE4256 - SPDT CATV Switch

General Description

The PE4256 is an UltraCMOS® Switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 3 GHz.

This single-supply SPDT switch integrates a two-pin CMOS control interface.

Key Features

  • 75Ω characteristic impedance.
  • Integrated 75Ω terminations.
  • CTB performance of.
  • 90 dBc.
  • High isolation: 65 dB at 1000 MHz.
  • Low insertion loss:.
  • 0.5 dB at 5 MHz, typ.
  • 0.9 dB at 1000 MHz, typ.
  • High input IP3: >50 dBm.
  • CMOS two-pin control.
  • Single +3V supply operation.
  • Low current consumption: 8 μA.
  • Unique all-off terminated mode.
  • Package: 4 x 4 mm QFN Figure 1. PE4256 fun.

📥 Download Datasheet

Datasheet Details

Part number PE4256
Manufacturer pSemi
File Size 904.07 KB
Description SPDT CATV Switch
Datasheet download datasheet PE4256 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE4256 SPDT CATV UltraCMOS Switch Peregrine Semiconductor
PE42562 SP6T RF Switch Peregrine Semiconductor
PE4250 SPDT RF Switch Peregrine Semiconductor
PE4251 SPDT RF Switch Peregrine Semiconductor
PE42510A SPDT High Power UltraCMOS RF Switch Peregrine Semiconductor

Other Datasheets by pSemi

Part Number Description
PE42512 RF Switch
PE42528 SPDT RF Switch
PE423211 SPDT RF Switch
PE423422 SPDT RF Switch
PE423641 SP4T RF Switch

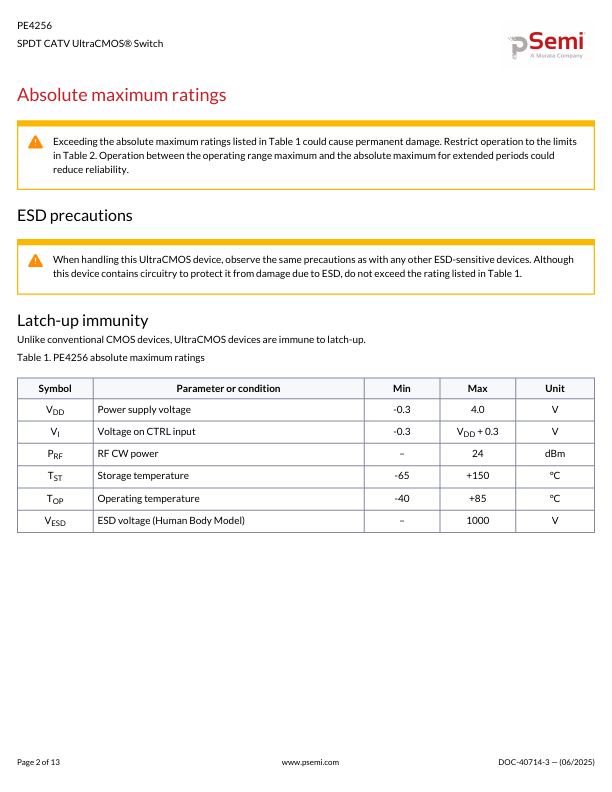

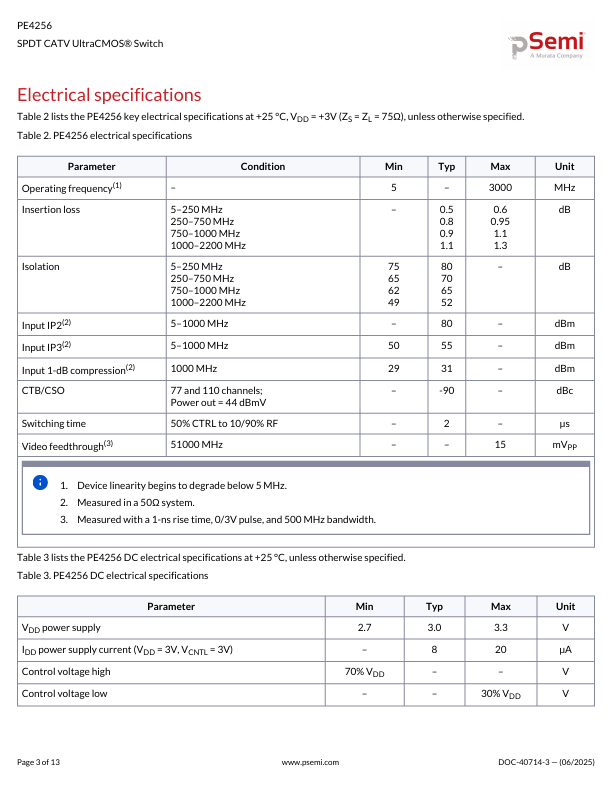

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
PE4256 Document category: Product Specification 75Ω SPDT CATV UltraCMOS® Switch, 5 MHz–3 GHz Features • 75Ω characteristic impedance • Integrated 75Ω terminations • CTB performance of –90 dBc • High isolation: 65 dB at 1000 MHz • Low insertion loss: • 0.5 dB at 5 MHz, typ. • 0.9 dB at 1000 MHz, typ. • High input IP3: >50 dBm • CMOS two-pin control • Single +3V supply operation • Low current consumption: 8 μA • Unique all-off terminated mode • Package: 4 x 4 mm QFN Figure 1. PE4256 functional diagram Product description The PE4256 is an UltraCMOS® Switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 3 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface.
